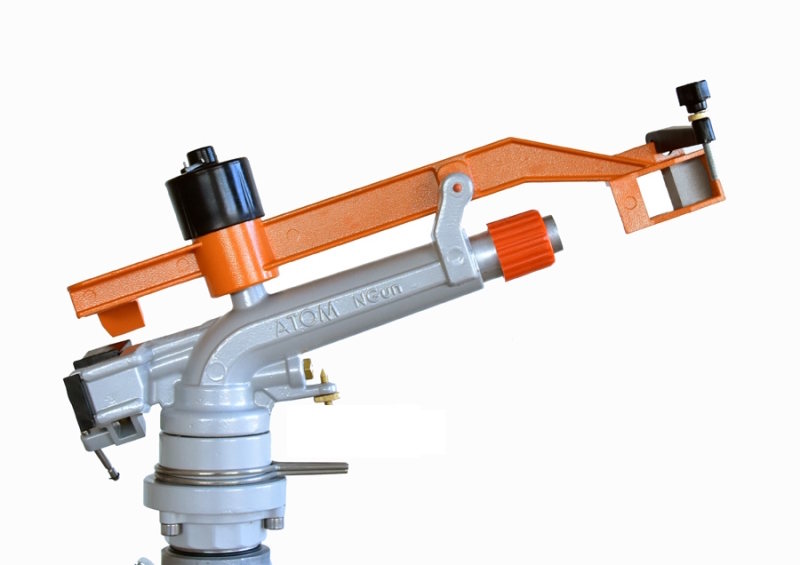

DuCaR Atom NGun 40

2 review(s) | Add your review

Water Input

2" Female BSP

Working Pressure

25 - 65 psi

Water Flow

183 - 532 l/min

Shooting Radius

19 - 33 m

Nozzles

14, 16, 18, 20 mm

Body Angle

18°

Weight

2.5 kg

Operation

Full & Part Circle

Material

Cast-Iron, Aluminium, Brass

Made in

Turkey

370,00 €

Manufacturer: DuCaR Sprinklers

SKU: AtomNGun

Availability:

In stock

Shipping

Delivery date 3-5 business days

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Make Your Sprinkler Set:

DuCaR 2" Wheeled Cart with Extendable Legs [+234,00 €]
DuCaR 2" Wheeled Cart with Hose Reel [+278,00 €]
DuCaR Quick Coupling 4-legged Stand 2" Inlet [+216,00 €]

Qty:

+ -

DuCar Atom NGun 40

We guarantee 100% satisfaction!

It is designed to be used as END GUN on pivot systems. Highly durable, long range, low body angle impact sprinkler head.

Because of our special design and experiences against swing arm models, it’s a highly efficient end gun for pivot systems.

Thanks to its 18° body angle, it is fully compatible with portable or fixed systems in windy areas and where you need to irrigate at low altitudes.

Technical Specifications

mm	inch	kg/cm²	lbs/inch	m	feet	l/min	m³/h	G.P.M	m²	acre	mm/h
Nozzle Diameter		Pressure		Jet Length		Capacity			Values for a single sprinkler
Nozzle Diameter		Pressure		Jet Length		Capacity			Irrigated Area		Rainfall per hour
14	0.55	1.75	25	19,0	62	183	11	48	1134	0.28	9.7
14	0.55	2	29	21.0	69	207	12.4	55	1385	0.34	9.0
14	0.55	2.5	37	22.0	72	232	13.9	61	1520	0.38	9.1
14	0.55	3	44	24.0	79	243	14.6	64	1809	0.45	8.1
16	0.62	2	29	23.0	75	252	15.1	66	1661	0.41	9.1
16	0.62	2.5	37	24.0	79	278	16.7	74	1809	0.45	9.2
16	0.62	3	44	25.0	82	303	18.2	80	1963	0.48	9.3
16	0.62	4	56	27.0	89	350	21	92	2289	0.57	9.1
18	0.70	2.5	37	25.0	82	363	21.8	96	1963	0.48	11.1
18	0.70	3	44	27.0	89	383	23	101	2289	0.57	10.0
18	0.70	4	56	28.0	92	450	27	119	2462	0.61	11.0
18	0.70	4.5	65	31.0	102	483	29	128	3018	0.75	9.6
20	0.78	3	44	27.0	89	376	24	106	2289	0.57	10.5
20	0.78	4	56	31.0	102	460	28.2	124	3018	0.75	9.3
20	0.78	4.5	65	33.0	108	532	33	145	3419	0.84	9.7

DuCar Atom NGun 40

We guarantee 100% satisfaction!

It is designed to be used as END GUN on pivot systems. Highly durable, long range, low body angle impact sprinkler head.

Because of our special design and experiences against swing arm models, it’s a highly efficient end gun for pivot systems.

Thanks to its 18° body angle, it is fully compatible with portable or fixed systems in windy areas and where you need to irrigate at low altitudes.

Technical Specifications

mm	inch	kg/cm²	lbs/inch	m	feet	l/min	m³/h	G.P.M	m²	acre	mm/h
Nozzle Diameter		Pressure		Jet Length		Capacity			Values for a single sprinkler
Nozzle Diameter		Pressure		Jet Length		Capacity			Irrigated Area		Rainfall per hour
14	0.55	1.75	25	19,0	62	183	11	48	1134	0.28	9.7
14	0.55	2	29	21.0	69	207	12.4	55	1385	0.34	9.0
14	0.55	2.5	37	22.0	72	232	13.9	61	1520	0.38	9.1
14	0.55	3	44	24.0	79	243	14.6	64	1809	0.45	8.1
16	0.62	2	29	23.0	75	252	15.1	66	1661	0.41	9.1
16	0.62	2.5	37	24.0	79	278	16.7	74	1809	0.45	9.2
16	0.62	3	44	25.0	82	303	18.2	80	1963	0.48	9.3
16	0.62	4	56	27.0	89	350	21	92	2289	0.57	9.1
18	0.70	2.5	37	25.0	82	363	21.8	96	1963	0.48	11.1
18	0.70	3	44	27.0	89	383	23	101	2289	0.57	10.0
18	0.70	4	56	28.0	92	450	27	119	2462	0.61	11.0
18	0.70	4.5	65	31.0	102	483	29	128	3018	0.75	9.6
20	0.78	3	44	27.0	89	376	24	106	2289	0.57	10.5
20	0.78	4	56	31.0	102	460	28.2	124	3018	0.75	9.3
20	0.78	4.5	65	33.0	108	532	33	145	3419	0.84	9.7

Products specifications

Attribute name	Attribute value
Body Angle	Medium Body Angle (23 ° to 30 °)
Water Input	2"
Circle	Full & Part
Minimum Required Pressure	29 psi (2 bar)
Maximum Working Pressure	73 psi (5 bar)
Minimum Required Water Flow	185 l/min
Maximum Water Flow	550 l/min
Minimum Shooting Range	21 - 25 m
Maximum Shooting Range	30 - 40 m
Nozzles	14, 16, 18, 20, 22, 24 mm
