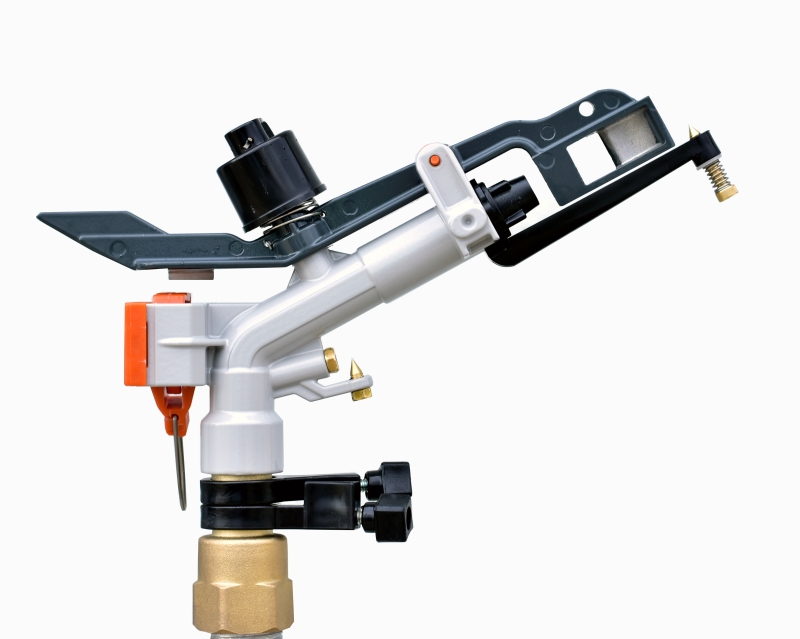

DuCaR Atom 23 Metal

Be the first to review this product

NEW METAL low to medium water flow, impact, part and full circle sprinkler with double sprayers.

Water Input

1" Female BSP

Working Pressure

22 - 65 psi

Water Flow

50 - 143 l/min

Shooting Radius

14 - 23 m

Free Nozzles

7, 8, 9, 10 mm

Body Angle

28°

Box Dimensions

15x20x4 cm

Weight

1 kg

Body Material

Cast Iron & Aluminium

Housing

Brass

Made in

Turkey

$99.00

Manufacturer: DuCaR Sprinklers

SKU: Atom23

Shipping

Delivery date 2-3 business days

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Make Your Sprinkler Set:

DuCaR 1" Sprinkler Skid Base [+$120.00]
DuCaR 1" Quick Coupling with Auto-Stop Valve [+$33.00]
DuCaR 1" Wheeled Sprinkler Cart [+$190.00]
DuCaR 1" Aluminium Tripod Connection Stand [+$180.00]

Qty:

+ -

IrrigationBox proudly presents DuCar Sprinklers! As an authorised distributor of DuCaR Sprinklers, we provide wide range of high quality irrigation equipment and guarantee 100% satisfaction!

Ducar ATOM 23 is a heavy duty low to mid volume sprinkler with cast iron body and brass inlet. It provides long shooting range with perfectly even distribution at a great price!

Some unique benefits of DuCaR ATOM 23 sprinkler:

Comes with 4 different nozzles (7 mm, 8 mm, 9 mm and 10mm)
Runs on pressure range between 22 to 65 psi
Full and part (angle-adjusted) circle irrigation
Irrigates up to 46m diameter
Lays down 3.1 to 8.6 tons of water per hour
Provides perfectly even distribution with its ADJUSTABLE jet breaker from the sprinkler all the way out to the end of the throw
Unlike the other impact type sprinklers, it does not have only one jet breaker attached to the nozzle. It comes with a secondary jet braker that can be attached to the arm so when the water pushes the arm out of the stream the sprinkler is allowed to throw full distance un-diffused and when the arm hits the stream to move the sprinkler it also diffuses the water just for that moment.
Its 28° body angle reduces the effects of the wind more than 30° and 33° versions; conveniently used for any type of irrigation.
Secondary nozzle enables you to irrigate bottom area of the sprinkler even in low pressure & volume applications
Great for any field crops and vegetables
Lower Body Rotation Mechanism: BRASS housing, Teflon and stainless steel
Upper body is made of cast iron and aluminium

Technical Specifications

mm	inch	atm	psi	m	feet	l/min	m³/h	G.P.M	m²	acre	mm/h
Nozzle Diameter		Pressure		Jet Length		Capacity			Values for a single sprinkler
Nozzle Diameter		Pressure		Jet Length		Capacity			Irrigated Area		Rainfall per hour
7	0.28	.1.5	22	14.0	46	51	3.1	14	615	0.15	5.0
7	0.28	2	29	15.0	49	59	3.6	16	707	0.17	5.1
7	0.28	3	44	17.5	57	71.7	4.3	19	962	0.24	4.5
7	0.28	4	56	18.5	61	82.5	5.0	22	1075	0.27	4.7
8	0.31	1.5	22	14.5	48	61.7	3.7	16	660	0.16	5.6
8	0.31	2	29	16.5	54	71.7	4.3	19	855	0.21	5.0
8	0.31	3	44	18.0	59	86.7	5.2	23	1017	0.25	5.1
8	0.31	4	56	19.0	62	100	6.0	26	1134	0.28	5.3
9	0.35	2	29	17.0	56	86.7	5.2	23	907	0.22	5.7
9	0.35	3	44	19.0	62	105	6.3	28	1134	0.28	5.6
9	0.35	4	56	20.5	67	122	7.3	32	1320	0.33	5.5
10	0.39	2	29	17	56	102	6.1	27	907	0.22	6.7
10	0.39	3	44	19.5	64	123	7.4	33	1194	0.29	6.2
10	0.39	4	56	21.5	71	143	8.6	38	1451	0.36	5.9
10	0.39	4.5	65	23	75	143	8.6	38	1661	0.41	5.2

Download Catalogue

Comes with 4 different nozzles (7 mm, 8 mm, 9 mm and 10mm)
Runs on pressure range between 22 to 65 psi
Full and part (angle-adjusted) circle irrigation
Irrigates up to 46m diameter
Lays down 3.1 to 8.6 tons of water per hour
Provides perfectly even distribution with its ADJUSTABLE jet breaker from the sprinkler all the way out to the end of the throw
Unlike the other impact type sprinklers, it does not have only one jet breaker attached to the nozzle. It comes with a secondary jet braker that can be attached to the arm so when the water pushes the arm out of the stream the sprinkler is allowed to throw full distance un-diffused and when the arm hits the stream to move the sprinkler it also diffuses the water just for that moment.
Its 28° body angle reduces the effects of the wind more than 30° and 33° versions; conveniently used for any type of irrigation.
Secondary nozzle enables you to irrigate bottom area of the sprinkler even in low pressure & volume applications
Great for any field crops and vegetables
Lower Body Rotation Mechanism: BRASS housing, Teflon and stainless steel
Upper body is made of cast iron and aluminium

Technical Specifications

mm	inch	atm	psi	m	feet	l/min	m³/h	G.P.M	m²	acre	mm/h
Nozzle Diameter		Pressure		Jet Length		Capacity			Values for a single sprinkler
Nozzle Diameter		Pressure		Jet Length		Capacity			Irrigated Area		Rainfall per hour
7	0.28	.1.5	22	14.0	46	51	3.1	14	615	0.15	5.0
7	0.28	2	29	15.0	49	59	3.6	16	707	0.17	5.1
7	0.28	3	44	17.5	57	71.7	4.3	19	962	0.24	4.5
7	0.28	4	56	18.5	61	82.5	5.0	22	1075	0.27	4.7
8	0.31	1.5	22	14.5	48	61.7	3.7	16	660	0.16	5.6
8	0.31	2	29	16.5	54	71.7	4.3	19	855	0.21	5.0
8	0.31	3	44	18.0	59	86.7	5.2	23	1017	0.25	5.1
8	0.31	4	56	19.0	62	100	6.0	26	1134	0.28	5.3
9	0.35	2	29	17.0	56	86.7	5.2	23	907	0.22	5.7
9	0.35	3	44	19.0	62	105	6.3	28	1134	0.28	5.6
9	0.35	4	56	20.5	67	122	7.3	32	1320	0.33	5.5
10	0.39	2	29	17	56	102	6.1	27	907	0.22	6.7
10	0.39	3	44	19.5	64	123	7.4	33	1194	0.29	6.2
10	0.39	4	56	21.5	71	143	8.6	38	1451	0.36	5.9
10	0.39	4.5	65	23	75	143	8.6	38	1661	0.41	5.2

Download Catalogue

Products specifications

Attribute name	Attribute value
Body Angle	Medium Body Angle (23 ° to 30 °)
Water Input	1"
Circle	Full & Part
Minimum Required Pressure	21 psi (1.5 bar)
Maximum Working Pressure	59 psi (4 bar)
Minimum Required Water Flow	40 l/min
Maximum Water Flow	180 l/min
Minimum Shooting Range	13 - 15 m
Maximum Shooting Range	20 - 25 m
Box Dimension	25x40x6 cm
Nozzles	7, 8, 9, 10 mm
Weight	0.8 kg
