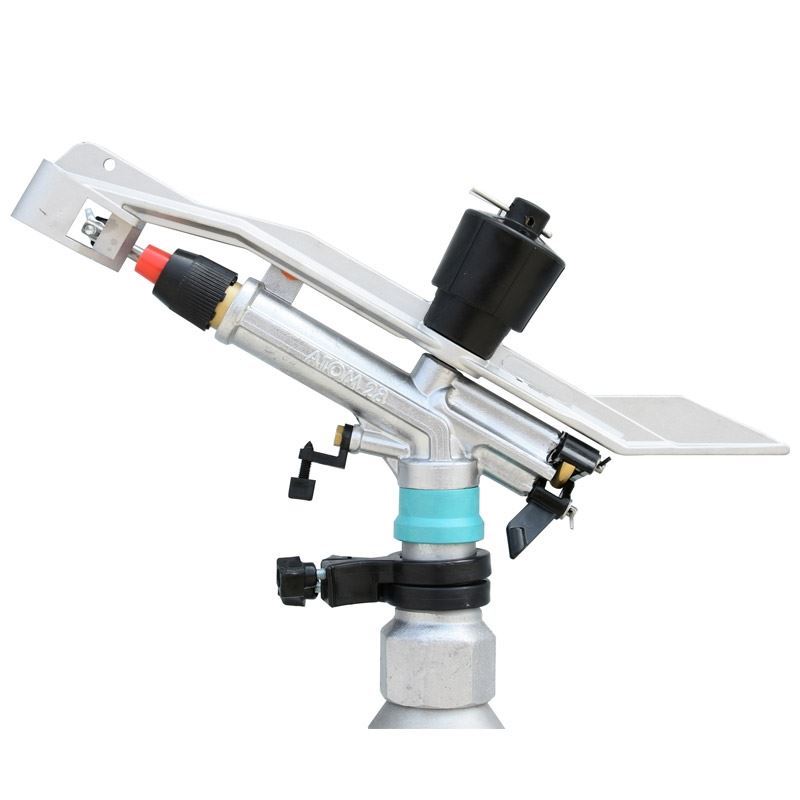

DuCaR Atom 28 ECON

SKU: Atom28-ECON
Delivery date: 3-5 business days
Manufacturer: DuCaR Sprinklers

COST EFFECTIVE, ALUMINIUM, double-nozzle, medium flow rates, impact irrigation sprinkler.


Water Input
:
1.5" Female BSP

Working Pressure
:
29 - 70 psi

Water Flow
:
86 - 309 l/min

Shooting Radius
:
19 - 28 m

Free Nozzles
:
10, 12, 14 mm

Body Angle
:
30°

Box Dimensions
:
25x40x6 cm

Weight
:
1.5 kg

Sprayers
:
2

Material
:
Aluminium & Brass
$140.00

IrrigationBox proudly presents DuCar Sprinklers! As an authorised distributor of DuCaR Sprinklers, we provide wide range of high quality irrigation equipment and guarantee 100% satisfaction!

Ducar ATOM 28 ECON is a NEW model of our mid volume sprinklers which provides long shooting range with perfectly even distribution at a great price!

Some unique benefits of DuCaR ATOM 28 ECON sprinkler:

  • Comes with 3 different METAL nozzles (10, 12, 14 mm)
  • 2 Trajectories
  • Runs on pressure range between 29 to 70 psi
  • Full and part (angle-adjusted) circle irrigation
  • Irrigates up to 56m diameter
  • Lays down 6.5 to 18.8 tons of water per hour
  • Dynamic or attached jet breakers
  • Provides perfectly even distribution with its ADJUSTABLE jet breaker from the sprinkler all the way out to the end of the throw
  • Replaceable nozzle ends and two-hole water outlets allow you to irrigate your field excellently by using minimum water
  • Great for any field crops and vegetables
  • Auto BRAKE system for keeping slow rotation speed on high pressure.
  • ALUMINIUM Body and BRASS housing.
Technical Specifications

Nozzle Diameter Pressure Jet Length Capacity Values for a single sprinkler
Irrigated Area Rainfall per hour
mminchatmpsimfeetl/minm3/hG.P.Mm2acremm/h
10 .39 2 29 19 62 86,7 6,5 23 1134 0,28 4,6
10 .39 3 44 21 69 107 7,8 28 1385 0,34 4,6
10 .39 4 56 23 75 123 9,1 33 1661 0,41 4,5
10 .39 5 70 23,5 77 236 10,5 46 1734 0,43 5,2
12 .47 2 29 21,0 69 152 9,0 41 1385 0,34 6,7
12 .47 3 44 23,0 75 182 11,2 49 1661 0,41 6,7
12 .47 4 56 25,5 84 211 13,0 57 2042 0,50 6,4
12 .47 5 70 26,5 87 236 14,2 63 2205 0,54 5,2
14 .55 2 29 22,0 72 195 12,0 53 1520 0,38 8,4
14 .55 3 44 23,5 77 239 14,1 64 1734 0,43 8,4
14 .55 4 56 27,0 89 277 16,5 74 2289 0,57 7,4
14 .55 5 70 28,0 92 309 18,8 83 2462 0,61 7,7

IrrigationBox proudly presents DuCar Sprinklers! As an authorised distributor of DuCaR Sprinklers, we provide wide range of high quality irrigation equipment and guarantee 100% satisfaction!

Ducar ATOM 28 ECON is a NEW model of our mid volume sprinklers which provides long shooting range with perfectly even distribution at a great price!

Some unique benefits of DuCaR ATOM 28 ECON sprinkler:

  • Comes with 3 different METAL nozzles (10, 12, 14 mm)
  • 2 Trajectories
  • Runs on pressure range between 29 to 70 psi
  • Full and part (angle-adjusted) circle irrigation
  • Irrigates up to 56m diameter
  • Lays down 6.5 to 18.8 tons of water per hour
  • Dynamic or attached jet breakers
  • Provides perfectly even distribution with its ADJUSTABLE jet breaker from the sprinkler all the way out to the end of the throw
  • Replaceable nozzle ends and two-hole water outlets allow you to irrigate your field excellently by using minimum water
  • Great for any field crops and vegetables
  • Auto BRAKE system for keeping slow rotation speed on high pressure.
  • ALUMINIUM Body and BRASS housing.
Technical Specifications

Nozzle Diameter Pressure Jet Length Capacity Values for a single sprinkler
Irrigated Area Rainfall per hour
mminchatmpsimfeetl/minm3/hG.P.Mm2acremm/h
10 .39 2 29 19 62 86,7 6,5 23 1134 0,28 4,6
10 .39 3 44 21 69 107 7,8 28 1385 0,34 4,6
10 .39 4 56 23 75 123 9,1 33 1661 0,41 4,5
10 .39 5 70 23,5 77 236 10,5 46 1734 0,43 5,2
12 .47 2 29 21,0 69 152 9,0 41 1385 0,34 6,7
12 .47 3 44 23,0 75 182 11,2 49 1661 0,41 6,7
12 .47 4 56 25,5 84 211 13,0 57 2042 0,50 6,4
12 .47 5 70 26,5 87 236 14,2 63 2205 0,54 5,2
14 .55 2 29 22,0 72 195 12,0 53 1520 0,38 8,4
14 .55 3 44 23,5 77 239 14,1 64 1734 0,43 8,4
14 .55 4 56 27,0 89 277 16,5 74 2289 0,57 7,4
14 .55 5 70 28,0 92 309 18,8 83 2462 0,61 7,7
Products specifications
Body Angle Medium Body Angle (23 ° to 30 °)
Water Input 1.5"
Circle Full & Part
Minimum Required Pressure 29 psi (2 bar)
Maximum Working Pressure 73 psi (5 bar)
Minimum Required Water Flow 85 l/min
Maximum Water Flow 300 l/min
Minimum Shooting Range 16 - 20 m
Maximum Shooting Range 26 - 30 m
Box Dimension 25x40x6 cm
Nozzles 10, 12, 14 mm
Weight 1.6
Write your own review
  • Only registered users can write reviews
*
*
  • Bad
  • Excellent

DuCaR Sprinklers

Established in 1981 and headquartered in Turkey, is one of the leader irrigation sprinkler manufacturing companies in the world. It offers products and services ranging from gear driven, impact irrigation sprinklers, connection stands, pumps, and complete irrigation system design. Since agricultural and industrial irrigation needs vary for different environmental effects, producing only couple of different types of sprinklers does not meet the all requirments in different regions and countries. Hence why DuCaR Sprinklers offers custom designed sprinkler systems to meet all farmers' requirements around the world.

Its fully automated latest technology manufactirng system, CNC machines and CAD & CAM software systems enable them to produce accurate and defect free products.

DuCaR Sprinklers works with farmers and scientists around the world to improve irrigation systems' quality to promote sustainable agriculture with best prices.

DuCaR-Sprinklers-Logo
Made-in-Turkey

*
*
*

These irrigation calculators will help compute your irrigation needs based on your growing practices, types of soil, and vegetation.

Popular Calculators

Irrigation Management Calculators

  • Irrigation Frequency: maximum interval allowed between irrigations. This is dependent on soil type, root zone depth, and the water use rate of the crop.
  • Set Irrigation Times: set time required to fulfill a given water application, irrigation area, and flow rate.
  • Water Depth: Depth of water applied to a specified area over the specified time span based on the given flow rate.
  • Water Application Rate: Application rate using the flow rate on an area.

Drip Irrigation Calculators

Sprinkler Irrigation Calculators

Center Pivot Irrigation Calculators

Residential Irrigation Calculators

General Design Calculators

Products specifications
Body Angle Medium Body Angle (23 ° to 30 °)
Water Input 1.5"
Circle Full & Part
Minimum Required Pressure 29 psi (2 bar)
Maximum Working Pressure 73 psi (5 bar)
Minimum Required Water Flow 85 l/min
Maximum Water Flow 300 l/min
Minimum Shooting Range 16 - 20 m
Maximum Shooting Range 26 - 30 m
Box Dimension 25x40x6 cm
Nozzles 10, 12, 14 mm
Weight 1.6
