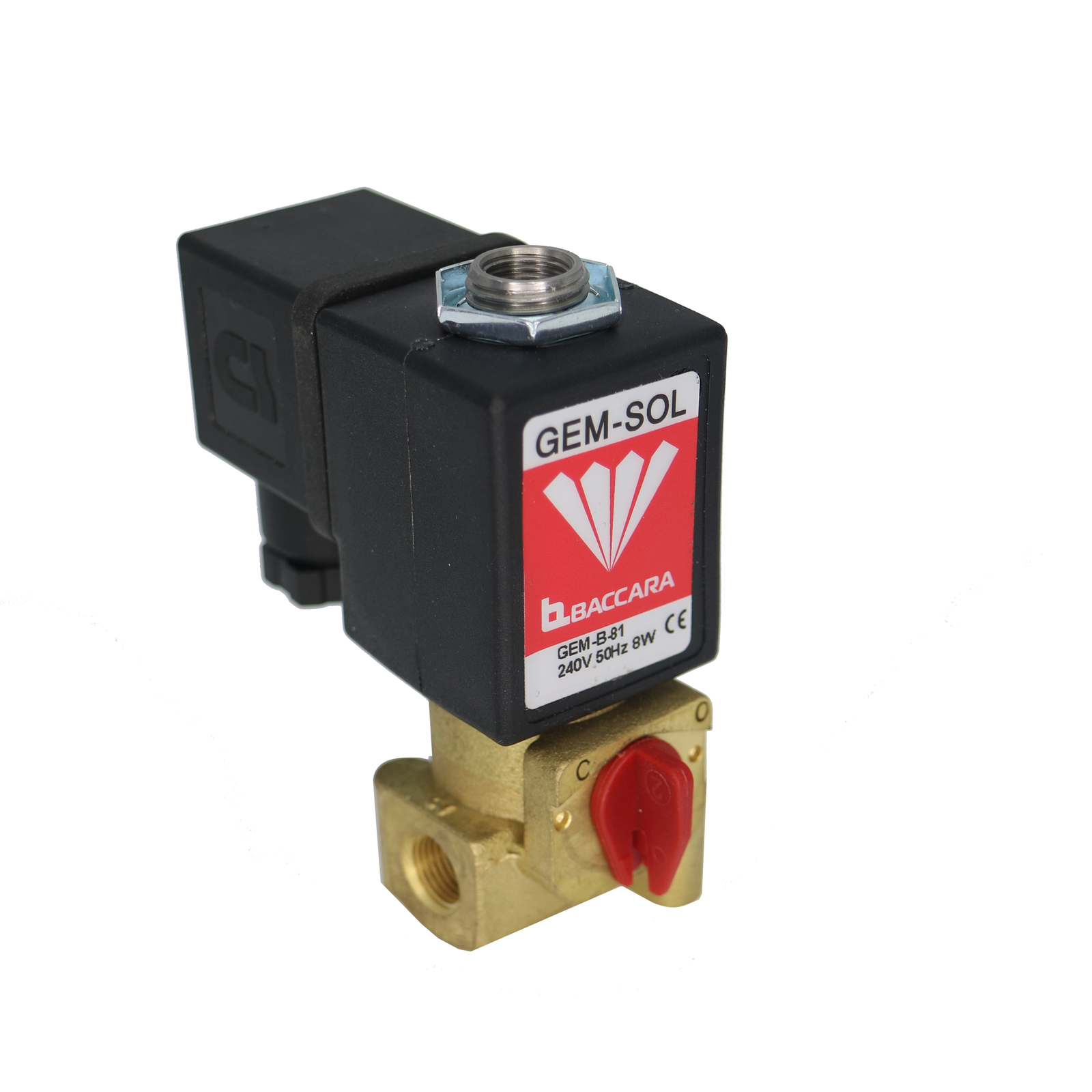

GEM-A3P | Latch w/Brass Solenoid Valve

Size
:
1/8" and 1/4" BSP
Function
:
3 Way, NC, NO
Valve Operation
:
Direct Operated
Body Material
:
Brass
Seal
:
NBR
Pressure Range
:
6 - 12 bar
Media
:
Air, water, oil
130,00 €
Manufacturer: Baccara
Delivery date 3-5 business days
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
*
*
*
*
+ -

Technical Data

Function 2, 3 Way NC
Ports size 1/8" and 1/4" BSP
Orifice size See table
Pressure range See table
Kv (l/min) See table
Temperature range Fluid : -10ºC to 80ºC (no freezing)
Ambient : -10ºC to 50ºC
Materials in contact
with media
Manual override:
Plastic
Main Valve:
Brass
Solenoid Operator:
Stainless Steel AISI 300 & 400 series
Seals:
NBR, EPDM
Media Air, water, oil
Coil type Latch
Standard protection class IP65 with connector
* Option : IP68 (please refer to GEM-BP Coil)



Max. Pressure (bar) 2W NC table

Orifice (mm) 08 1 2 1 6 2 0 2 4 30 40
Pressure (bar) 16 16 16 16 16 16 8
Flow factor Kv(l/min) 05 1 1 1 7 2 5 35 45 5



Max. Pressure (bar) 3W NC table

Orifice (mm) 08 1 2 1 6 2 0 2 4 30
Pressure (bar) 16 16 16 14 10 6
Flow factor Kv(l/min) 05 1 1 1 7 2 5 35 45

GEM-A3P-LATCH-DIMENSIONS

G75-A3P-2W-Plumbing-Diagram

G75-A3P-2W-Plumbing-Diagram
