Pressure Reducing and Sustaining Control Valve

Pressure Reducing and Sustaining Valves can be used for avoiding any interaction of high altitude and low altitude usage areas which is fed by same line

Connection
:
Flanged - Threaded - Grooved End
Material
:
GG25 - GGG40
Coating
:
Epoxy
Temperature
:
-10 to 80 °C
Max Operating Pressure
:
10 - 16 - 25 bar
Made in
:
Turkey
179,00 €
Manufacturer: Armas Valves & Filters
SKU: 600-Series-PRPS
Delivery date 3-10 business days
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
*
  • Threaded
    Threaded
    Not available
  • Grooved End
    Grooved End
    Not available
  • Flanged
    Flanged
    Not available
*
*
*
*
*
*
+ -

Armas 600 Series - Pressure Reducing and Sustaining Control Valve

Applications

  • Irrigation
  • Industrial

FEATURES

  • The valve will be direct diaphragm closing automatic hydraulic control valve which works with line pressure. No wearable parts
    such as stem, bearing and seat exist in main valve body.
  • The valve position will be controlled by a hand operated selector valve.
  • Valve size same as main line or one size smaller.
  • Maximum flow speed for continuous operation 5.5 m/sec (18 ft/sec).
  • Made in Turkey

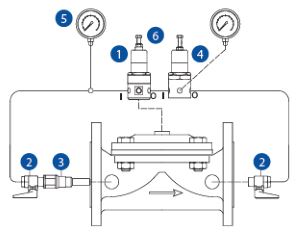

Pressure reducing and sustaining control valve parts

ARMAS 600 Series Pressure Reducing and Sustaining Control Valve

Armas Pressure Reducing and Sustaining Control Valve reduces valve downstream pressure to desired value by sustaining upstream pressure. Two pilot valves exist on valve. Pilot valve on upstream side is the pressure sustaining pilot valve and sustains upstream pressure. Other pilot valve is pressure reducing pilot valve and keeps downstream pressure constant by reducing it to desired value. It controls upstream and downstream pressure continuously and keeps them within constant values.

COMPONENTS:

  1. Pressure Sustaining Pilot Valve
  2. Ball Valves
  3. In-line Finger Filter
  4. Pressure Reducing Pilot Valve
  5. Pressure Gauges
  6. Adjustment Bolt

ARMAS 600 Series Pressure Reducing and Sustaining Control Valve Sample Application

Pressure reducing and sustaining control valve sample

Armas 600 Series - Pressure Reducing and Sustaining Control Valve

Applications

  • Irrigation
  • Industrial

FEATURES

  • The valve will be direct diaphragm closing automatic hydraulic control valve which works with line pressure. No wearable parts
    such as stem, bearing and seat exist in main valve body.
  • The valve position will be controlled by a hand operated selector valve.
  • Valve size same as main line or one size smaller.
  • Maximum flow speed for continuous operation 5.5 m/sec (18 ft/sec).
  • Made in Turkey



Pressure reducing and sustaining control valve parts

ARMAS 600 Series Pressure Reducing and Sustaining Control Valve

Armas Pressure Reducing and Sustaining Control Valve reduces valve downstream pressure to desired value by sustaining upstream pressure. Two pilot valves exist on valve. Pilot valve on upstream side is the pressure sustaining pilot valve and sustains upstream pressure. Other pilot valve is pressure reducing pilot valve and keeps downstream pressure constant by reducing it to desired value. It controls upstream and downstream pressure continuously and keeps them within constant values.

COMPONENTS:

  1. Pressure Sustaining Pilot Valve
  2. Ball Valves
  3. In-line Finger Filter
  4. Pressure Reducing Pilot Valve
  5. Pressure Gauges
  6. Adjustment Bolt

ARMAS 600 Series Pressure Reducing and Sustaining Control Valve Sample Application

Pressure reducing and sustaining control valve sample
