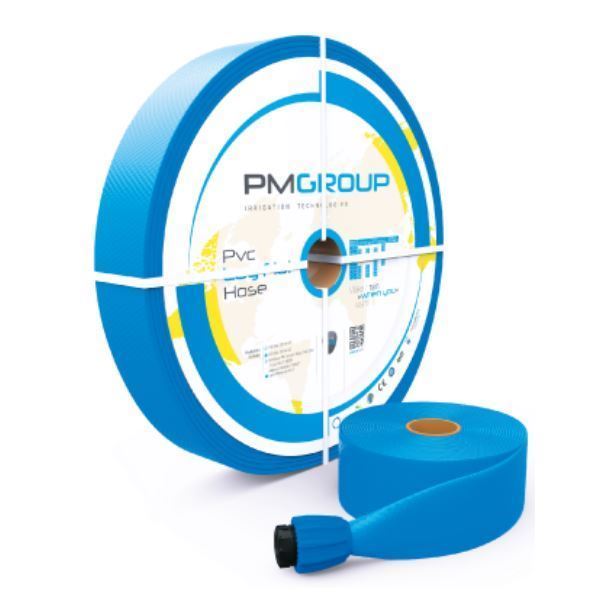

PM Group SKY (Blue) PVC Low Pressure Layflat Hoses

Be the first to review this product
SKU: PM-S2
Availability: In stock
Delivery date: 2-3 business days

Perfect for LOW pressure DRIP irrigation and dewatering applications.


Inside Diameter Range
:
2" (53 mm)

Wall Thickness
:
1.5 mm

Working Pressure Range
:
100 psi (6 Bar)

Weight
:
310 g/m
Call for pricing

PM Group SKY PVC (Blue) Lay Flat Hose

This made in TURKEY braided layflat hose is perfect for low pressure applications in industrial and irrigation industries. It is specifically desinged for DRIP applications.

Applications: Low pressure up to 6 bar application in;

  • Sprinkler Irrigation
  • Drip Irrigation main Line
  • Water Transfer
  • Construction

Construction: 3-Ply Polyester Yarns. Both tube and cover are extruded simultaneously to obtain maximum bonding.

Working Temperature: -21ºC to 70 ºC

For liability purposes, if temperature exceeds 45°C the working pressure will go down.



Technical Specifications

• Perfect connection polyester yarn by high technology
• Environment friendly raw materials / free of industrial waste.
• UV provides long lasting life
• Decreases stretching when exposed to pressure.
• Anti-delamination, anti-expansion, anti-elongation, anti-torsion system
• Perfect for irrigation and water transportation.
• Stretching resistant traction resistant.
• Perfect adhesion between layers.
• Flat hose on fiexible pvc impregnated in the textile polyester sock, with only one layer.
• Single layer at hose manufactured with anti-delamination system and with reinforced traction capacity.
• Colour: darkblue
• Packaging: PE Shrinkage film or box only when the at hose is supplied with fıttings.
• Our products do not contain carcinogenic DOP

Size Inner Diameter Thickness Std Length Working Pressure (at 20c) Weight
mm inch mm mm m kg/ ㎠ (bar) g/m
53 2" 53 1.5 100 6 310

PM Group SKY PVC (Blue) Lay Flat Hose

This made in TURKEY braided layflat hose is perfect for low pressure applications in industrial and irrigation industries. It is specifically desinged for DRIP applications.

Applications: Low pressure up to 6 bar application in;

  • Sprinkler Irrigation
  • Drip Irrigation main Line
  • Water Transfer
  • Construction

Construction: 3-Ply Polyester Yarns. Both tube and cover are extruded simultaneously to obtain maximum bonding.

Working Temperature: -21ºC to 70 ºC

For liability purposes, if temperature exceeds 45°C the working pressure will go down.



Technical Specifications

• Perfect connection polyester yarn by high technology
• Environment friendly raw materials / free of industrial waste.
• UV provides long lasting life
• Decreases stretching when exposed to pressure.
• Anti-delamination, anti-expansion, anti-elongation, anti-torsion system
• Perfect for irrigation and water transportation.
• Stretching resistant traction resistant.
• Perfect adhesion between layers.
• Flat hose on fiexible pvc impregnated in the textile polyester sock, with only one layer.
• Single layer at hose manufactured with anti-delamination system and with reinforced traction capacity.
• Colour: darkblue
• Packaging: PE Shrinkage film or box only when the at hose is supplied with fıttings.
• Our products do not contain carcinogenic DOP

Size Inner Diameter Thickness Std Length Working Pressure (at 20c) Weight
mm inch mm mm m kg/ ㎠ (bar) g/m
53 2" 53 1.5 100 6 310
