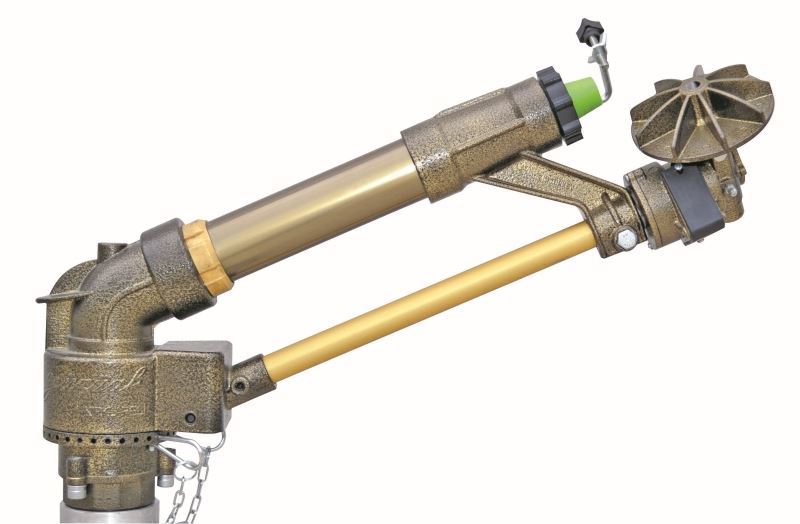

DuCaR JET 35T

4 review(s) | Add your review

Effluent, sandy and clean water irrigation sprinkler

Water Input

2" Female BSP

Working Pressure

37 - 85 psi

Water Flow

161 - 526 l/min

Shooting Radius

22 - 41 m

Free Nozzles

12, 14, 16, 18 mm

Body Angle

25°

Box Dimensions

20x18x62 cm

Weight

6 kg

Made in

Turkey

Price: 370,00 €

Old price: 524,00 €

Manufacturer: DuCaR Sprinklers

SKU: JET35T

Shipping

Delivery date 2-3 business days

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Make Your Sprinkler Set:

DuCaR 2" Wheeled Cart with Extendable Legs [+234,00 €]
DuCaR 2" 4-Legged Connection Stand with Quick Coupling [+216,00 €]
DuCaR 2" Inlet/Outlet Quick Coupling [+43,00 €]
Flex Rubber Nozzle Set (3 pcs nozzles) [+19,00 €]
DuCaR 2" Wheeled Cart with Hose Reel [+278,00 €]

Qty:

+ -

IrrigationBox proudly presents DuCar Sprinklers! As an authorised distributor of DuCaR Sprinklers, we provide wide range of high quality irrigation equipment and guarantee 100% satisfaction!

Ducar JET 35T is a gear driven, part and full circle sprinkler which provides long shooting range for DAIRY EFFLUENT and clean water irrigation with perfectly even distribution at a great price!

Some unique benefits of JET 35T:

Comes with 8 different nozzles, 4 for clean water, 4 for NON CLOGGING DIRTY WATER irrigation
Perfect for DAIRY EFFLUENT irrigation, horse ranches, pasture, arenas, large turf areas, dust control, gardens or other crops and more.
Run full or part circles at the same speed as it has spare gear mechanism for rotating.
Runs on pressure as low as 37psi and throws up to a 76m diameter circle.
It has a new state of the art powder coat paint which is highly durable against environmental impacts.
Features a dynamic water breaker for perfect uniform coverage.
Easy to set up and run

High capacity, medium pressure (2.5 – 6 atm) and gear drive sprinkler head rotating full circle or, when required, in a range set by angle adjustment.

Replaceable nozzle ends and movable water jet breaker system allow you to water your land excellently with a unique water distribution.

Equipped with new type one-hole nozzle. Thus it operates with less water and minimize nozzle clogging problem arising from foul water.

Also equipped with water passage pipe with special design anti-turbulence blades and rubber nozzles which automatically expand in case of clogging to dilute and distribute manures in the farms.

It has new type special paint; new type powder paint makes it much more durable against environmental effects.

Technical Specifications

mm	inch	atm	psi	m	feet	l/min	m³/h	G.P.M	m²	acre	mm/h
Nozzle Diameter		Pressure		Jet Length		Capacity			Values for a single sprinkler
Nozzle Diameter		Pressure		Jet Length		Capacity			Irrigated Area		Rainfall per hour
12	0,47	2.5	37	22	72	161,7	10	43	1519	0,38	6,4
12	0,47	3	44	24	79	176,7	11	47	1808	0,45	5,9
12	0,47	4	56	26	85	203,3	12	54	2122	0,52	5,7
14	0,55	2.5	37	24	79	220	13	58	1808	0,45	7,3
14	0,55	3	44	26	85	233,3	14	62	2122	0,52	6,6
14	0,55	4	56	29	95	270	16	71	2640	0,65	6,1
14	0,55	5	70	32	105	305	18	81	3215	0,79	5,7
16	0,62	2	29	26	85	241,7	15	64	2122	0,52	6,8
16	0,62	3	44	29	95	296,7	18	78	2640	0,65	6,7
16	0,62	4	56	31	100	341,7	21	90	2920	0,72	7,0
16	0,62	5	70	33	108	386,7	23	102	3419	0,84	6,8
18	0,70	4	56	35	115	450	27	119	3846	0,95	7,0
18	0,70	5	70	36	118	476,7	29	126	4069	1,01	7,0
18	0,70	6	85	38	125	526,7	32	139	4534	1,12	7,0
18	0.70	6	85	41	134	553,3	33,2	146	5278	1,30	6,3

Comes with 8 different nozzles, 4 for clean water, 4 for NON CLOGGING DIRTY WATER irrigation
Perfect for DAIRY EFFLUENT irrigation, horse ranches, pasture, arenas, large turf areas, dust control, gardens or other crops and more.
Run full or part circles at the same speed as it has spare gear mechanism for rotating.
Runs on pressure as low as 37psi and throws up to a 76m diameter circle.
It has a new state of the art powder coat paint which is highly durable against environmental impacts.
Features a dynamic water breaker for perfect uniform coverage.
Easy to set up and run

High capacity, medium pressure (2.5 – 6 atm) and gear drive sprinkler head rotating full circle or, when required, in a range set by angle adjustment.

Replaceable nozzle ends and movable water jet breaker system allow you to water your land excellently with a unique water distribution.

Equipped with new type one-hole nozzle. Thus it operates with less water and minimize nozzle clogging problem arising from foul water.

Also equipped with water passage pipe with special design anti-turbulence blades and rubber nozzles which automatically expand in case of clogging to dilute and distribute manures in the farms.

It has new type special paint; new type powder paint makes it much more durable against environmental effects.

Technical Specifications

mm	inch	atm	psi	m	feet	l/min	m³/h	G.P.M	m²	acre	mm/h
Nozzle Diameter		Pressure		Jet Length		Capacity			Values for a single sprinkler
Nozzle Diameter		Pressure		Jet Length		Capacity			Irrigated Area		Rainfall per hour
12	0,47	2.5	37	22	72	161,7	10	43	1519	0,38	6,4
12	0,47	3	44	24	79	176,7	11	47	1808	0,45	5,9
12	0,47	4	56	26	85	203,3	12	54	2122	0,52	5,7
14	0,55	2.5	37	24	79	220	13	58	1808	0,45	7,3
14	0,55	3	44	26	85	233,3	14	62	2122	0,52	6,6
14	0,55	4	56	29	95	270	16	71	2640	0,65	6,1
14	0,55	5	70	32	105	305	18	81	3215	0,79	5,7
16	0,62	2	29	26	85	241,7	15	64	2122	0,52	6,8
16	0,62	3	44	29	95	296,7	18	78	2640	0,65	6,7
16	0,62	4	56	31	100	341,7	21	90	2920	0,72	7,0
16	0,62	5	70	33	108	386,7	23	102	3419	0,84	6,8
18	0,70	4	56	35	115	450	27	119	3846	0,95	7,0
18	0,70	5	70	36	118	476,7	29	126	4069	1,01	7,0
18	0,70	6	85	38	125	526,7	32	139	4534	1,12	7,0
18	0.70	6	85	41	134	553,3	33,2	146	5278	1,30	6,3

Products specifications

Attribute name	Attribute value
Body Angle	Medium Body Angle (23 ° to 30 °)
Water Input	2"
Circle	Full & Part
Minimum Required Pressure	37 psi (2.5 bar)
Maximum Working Pressure	85 psi (6 bar)
Minimum Required Water Flow	150 l/min
Maximum Water Flow	550 l/min
Minimum Shooting Range	21 - 25 m
Maximum Shooting Range	30 - 40 m
Box Dimension	19.5x18x62 cm
Nozzles	12, 14, 16, 18 mm
Weight	5.7 kg
