Sorry - this product is no longer available

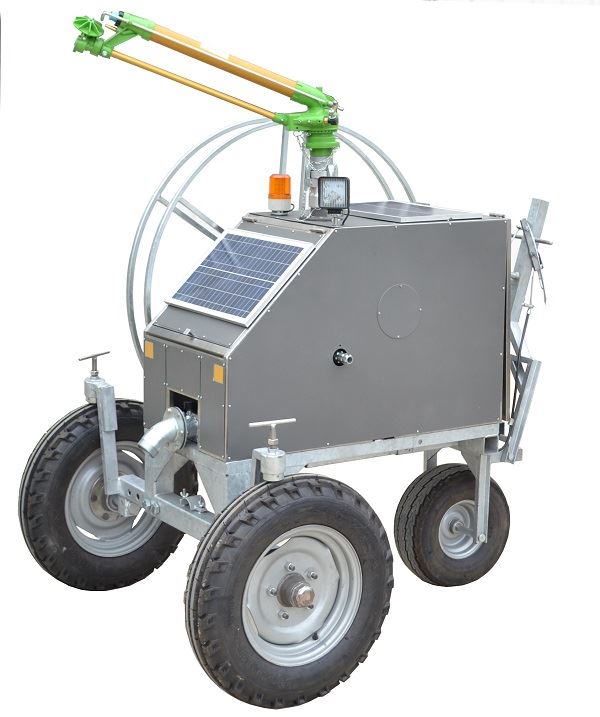

IrriCruiser ULTIMATE, "S" Line Travelling Irrigator

Be the first to review this product

New generation compact, easy to use, efficient, large spray width, safe, turbine drive, soft hose travelling irrigator suitable for agricultural irrigation, lawn and mining sites.

Wire Length

300 m

Lay Flat Hose

2.5" 150 m Premium Drag Hose

Working Pressure

60 - 90 psi

Water Flow

383 - 665 l/min

Effective Spray Width

50 - 70 m

Total Irrigated Area

330 X 420 m = 138,600 m² (~14 Hectare) in 7 days

Speed

10 - 90 m/hour

Sprinkler

DuCaR Jet 50 T

Mechanism

Turbine drive, 3-Speed Gear Box, Automatic Winch Spooling System & Automatic Stop at End of Run

Weight

550 kg

Construction

Heavy duty welded chassis all hot dip galvanized

$16,500.00

Manufacturer: DuCaR Sprinklers

SKU: IrriCruiser-S-Line

Shipping

Delivery date 3-10 business days

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Qty:

+ -

DuCaR IrriCruiser Ultimate "S" Line - New Generation Travelling Irrigator

Applications

Agriculture: Small to medium crops, pastures and dairy farms

Turf Irrigation: Golf, race courses, playing fields and gardens

Dust Control: Mining and construction sites

FEATURES

Heavy duty design
Fully hot dip galvanised chassis and hose reels – stainless frame
Travel shut-off mechanism
High efficient turbine: Depending on the water volume and pressure the turbine nozzle can be easily changed without tools.Delivers high torque at low RPMs even near end of run.
3-speed Italian made gear box: By adjusting the most efficient turbine rotation and speed, you can save energy.
Sensitive speed control: Extremely wide rangeof speed for any crop and application.
Solar energy powered LED light and safety lamp: Enables night time irrigation.
Manual brake system
Rear Tyrea 600 x 16 - Front Tyre : 18.5 x 8.5 x 8
Digital travel speed and turbine rotation tachometers
Electronic And Solar System (2 x 18 Amp Gel Battery, 2 x 20W Solar Panel, Digital Turbine and Tachometer RPM reader, Led Safety Lamp, Led Working Lamp, Led Inner Body Lamp)
Automatic winch spooling system: Provides perfectly rolled cable and extends cable’s life span.
Cable Drum Rewind Handlefor easy cable retrieval on an aborted run and to take up slack cable prior to start-up.
Hose reels (Optional up to 2 hose reels): The hose reels can be independently operated.
Portable: The DuCaR IrriCruiser is ideal for irrigating widely scattered areas. They can be towed from field to field or farm to farm.
Excellent Water Uniformity: The continuous movement of the sprinkler and traveller irrigator provides a perfect uniformity and even water distribution.
Long Life & Simple Maintenance:The units are built from long life components and require a minimum of maintenance. Spare parts and backup service available.
Easy and safe operation
Very low labour requirement: The DuCaR IrriCruiser can easily be operated by one man and the labour consists mostly of driving a tractor.
Compact Concept: Threewheels provide great mobility.
Extendible wheel bars: Provide stability and make the IrriCruiser suitable for narrow paths
Designed in Australia, made in Turkey

New Generation DuCaR IrriCuriser Turbine System

The turbine provides the high torque to pull the DuCaR IrriCuriser & Hose along the cable in tough conditions.
DuCaR IrriCuriser develops the power as a result of water flow, not pressure. Therefore it can be operated at low pressures.
Three speed heavy duty type; Italian made gear box coupled to the turbine provides the DuCaR IrriCuriser with a wide range of travel speeds to suit your particular crop water requirements and allows you to save a lot of energy.
The volume of water entering the turbine is controlled by a diverter valve, which when used with the three speed gearbox, provides the DuCaR IrriCuriser with infinite range of travel speeds to suit differing crop water requirements.
The turbine’s RPM and travelling speed is read on accurate digital tachometers.
No Filters required for the turbine drive.
No exhaust water from the turbine drive, all water is distributed through the sprinkler.

Irricruiser operation illustration

Technical Specifications of DuCaR JET 50T Sprinkler Head

mm	inch	atm	psi	m	feet	l/min	m³/h	G.P.M	m²	acre	mm/h
Nozzle Diameter		Pressure		Jet Length		Capacity			Values for a single sprinkler
Nozzle Diameter		Pressure		Jet Length		Capacity			Irrigated Area		Rainfall per hour
14	0,55	2,5	37	24	79	220	13,2	58	1808	0,45	7,3
14	0,55	3	44	26	85	233,3	14	62	2122	0,52	6,6
14	0,55	4	56	29	95	270	16,2	71	2640	0,65	6,1
16	0,62	2	29	26	85	241,7	14,5	64	2122	0,52	6,8
16	0,62	3	44	29	95	296,7	17,8	78	2640	0,65	6,7
16	0,62	4	56	31	100	341,7	20,5	90	2920	0,72	7,0
16	0,62	5	70	33	108	386,7	23,2	102	3419	0,84	6,8
18	0,70	3	44	32	105	375	22,5	99	3215	0,79	7,0
18	0,70	4	56	35	115	438,3	26,3	116	3846	0,95	6,8
18	0,70	5	70	37	121	470	28,2	124	4298	1,06	6,6
18	0,70	6	85	40	131	521,7	31,3	138	5024	1,24	6,2
20	0,78	3	44	35	115	445	26,7	118	2846	0,95	6,9
20	0,78	4	56	37	121	536,7	32,2	142	4298	1,06	7,5
20	0,78	5	70	42	138	591,7	35,5	156	5538	1,37	6,4
22	0,86	3	44	35	115	556,7	33,4	147	3846	0,95	8,7
22	0,86	4	56	37	121	641,7	38,5	170	4298	1,06	9,0
22	0,86	5	70	40	131	716,7	43	189	5024	1,24	8,6
22	0,86	6	85	42	138	786,7	47,2	208	5538	1,37	8,5
24	0,94	4	56	43	141	771,7	46,3	204	5805	1,43	8,0
24	0,94	5	70	45	148	801,7	48,1	212	6358	1,57	7,6
24	0,94	6	85	47	154	885	53,1	234	6936	1,71	7,7
24	0,94	7	100	50	164	950	57	251	7850	1,94	7,3

DuCaR IrriCruiser Ultimate "S" Line - New Generation Travelling Irrigator

Applications

Agriculture: Small to medium crops, pastures and dairy farms

Turf Irrigation: Golf, race courses, playing fields and gardens

Dust Control: Mining and construction sites

FEATURES

Heavy duty design
Fully hot dip galvanised chassis and hose reels – stainless frame
Travel shut-off mechanism
High efficient turbine: Depending on the water volume and pressure the turbine nozzle can be easily changed without tools.Delivers high torque at low RPMs even near end of run.
3-speed Italian made gear box: By adjusting the most efficient turbine rotation and speed, you can save energy.
Sensitive speed control: Extremely wide rangeof speed for any crop and application.
Solar energy powered LED light and safety lamp: Enables night time irrigation.
Manual brake system
Rear Tyrea 600 x 16 - Front Tyre : 18.5 x 8.5 x 8
Digital travel speed and turbine rotation tachometers
Electronic And Solar System (2 x 18 Amp Gel Battery, 2 x 20W Solar Panel, Digital Turbine and Tachometer RPM reader, Led Safety Lamp, Led Working Lamp, Led Inner Body Lamp)
Automatic winch spooling system: Provides perfectly rolled cable and extends cable’s life span.
Cable Drum Rewind Handlefor easy cable retrieval on an aborted run and to take up slack cable prior to start-up.
Hose reels (Optional up to 2 hose reels): The hose reels can be independently operated.
Portable: The DuCaR IrriCruiser is ideal for irrigating widely scattered areas. They can be towed from field to field or farm to farm.
Excellent Water Uniformity: The continuous movement of the sprinkler and traveller irrigator provides a perfect uniformity and even water distribution.
Long Life & Simple Maintenance:The units are built from long life components and require a minimum of maintenance. Spare parts and backup service available.
Easy and safe operation
Very low labour requirement: The DuCaR IrriCruiser can easily be operated by one man and the labour consists mostly of driving a tractor.
Compact Concept: Threewheels provide great mobility.
Extendible wheel bars: Provide stability and make the IrriCruiser suitable for narrow paths
Designed in Australia, made in Turkey

New Generation DuCaR IrriCuriser Turbine System

The turbine provides the high torque to pull the DuCaR IrriCuriser & Hose along the cable in tough conditions.
DuCaR IrriCuriser develops the power as a result of water flow, not pressure. Therefore it can be operated at low pressures.
Three speed heavy duty type; Italian made gear box coupled to the turbine provides the DuCaR IrriCuriser with a wide range of travel speeds to suit your particular crop water requirements and allows you to save a lot of energy.
The volume of water entering the turbine is controlled by a diverter valve, which when used with the three speed gearbox, provides the DuCaR IrriCuriser with infinite range of travel speeds to suit differing crop water requirements.
The turbine’s RPM and travelling speed is read on accurate digital tachometers.
No Filters required for the turbine drive.
No exhaust water from the turbine drive, all water is distributed through the sprinkler.

Irricruiser operation illustration

Technical Specifications of DuCaR JET 50T Sprinkler Head

mm	inch	atm	psi	m	feet	l/min	m³/h	G.P.M	m²	acre	mm/h
Nozzle Diameter		Pressure		Jet Length		Capacity			Values for a single sprinkler
Nozzle Diameter		Pressure		Jet Length		Capacity			Irrigated Area		Rainfall per hour
14	0,55	2,5	37	24	79	220	13,2	58	1808	0,45	7,3
14	0,55	3	44	26	85	233,3	14	62	2122	0,52	6,6
14	0,55	4	56	29	95	270	16,2	71	2640	0,65	6,1
16	0,62	2	29	26	85	241,7	14,5	64	2122	0,52	6,8
16	0,62	3	44	29	95	296,7	17,8	78	2640	0,65	6,7
16	0,62	4	56	31	100	341,7	20,5	90	2920	0,72	7,0
16	0,62	5	70	33	108	386,7	23,2	102	3419	0,84	6,8
18	0,70	3	44	32	105	375	22,5	99	3215	0,79	7,0
18	0,70	4	56	35	115	438,3	26,3	116	3846	0,95	6,8
18	0,70	5	70	37	121	470	28,2	124	4298	1,06	6,6
18	0,70	6	85	40	131	521,7	31,3	138	5024	1,24	6,2
20	0,78	3	44	35	115	445	26,7	118	2846	0,95	6,9
20	0,78	4	56	37	121	536,7	32,2	142	4298	1,06	7,5
20	0,78	5	70	42	138	591,7	35,5	156	5538	1,37	6,4
22	0,86	3	44	35	115	556,7	33,4	147	3846	0,95	8,7
22	0,86	4	56	37	121	641,7	38,5	170	4298	1,06	9,0
22	0,86	5	70	40	131	716,7	43	189	5024	1,24	8,6
22	0,86	6	85	42	138	786,7	47,2	208	5538	1,37	8,5
24	0,94	4	56	43	141	771,7	46,3	204	5805	1,43	8,0
24	0,94	5	70	45	148	801,7	48,1	212	6358	1,57	7,6
24	0,94	6	85	47	154	885	53,1	234	6936	1,71	7,7
24	0,94	7	100	50	164	950	57	251	7850	1,94	7,3
