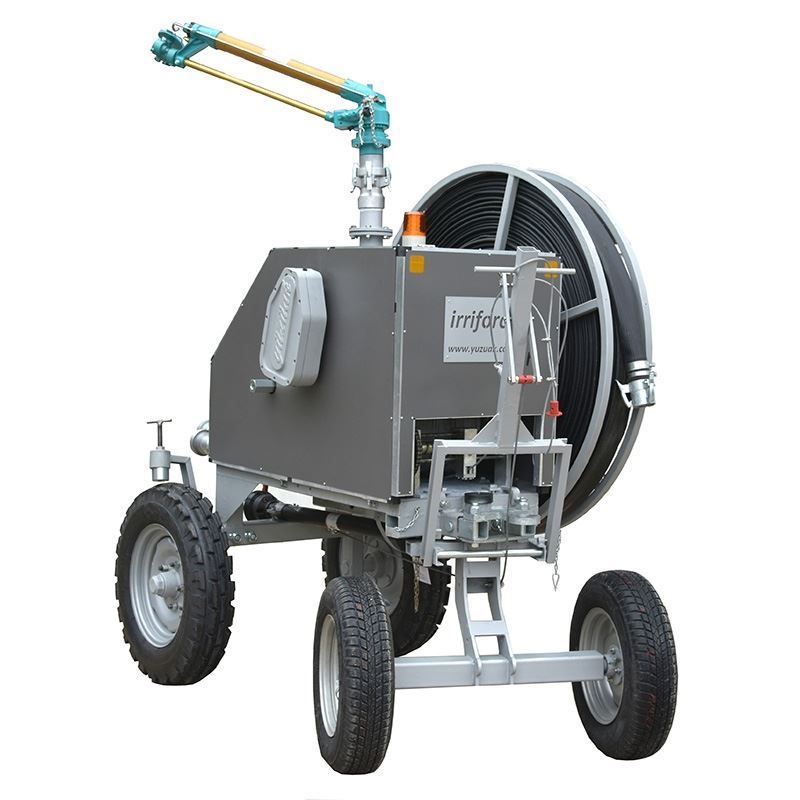

IrriCruiser Compact Travelling Irrigator

DuCaR IrriCruiser Compact - New Generation Travelling Irrigator

APPLICATIONS

Agriculture: Small to medium crops, pastures and dairy farms

Turf Irrigation: Golf, race courses, playing fields and gardens

Dust Control: Mining and construction sites

FEATURES

• Heavy duty design
• Fully hot dip galvanised chassis and hose reels – stainless frame
• Travel shut-off mechanism
• High efficient turbine: Depending on the water volume and pressure the turbine nozzle can be easily changed without tools.Delivers high torque at low RPMs even near end of run.
• 3-speed Italian made gear box: By adjusting the most efficient turbine rotation and speed, you can save energy.
• Sensitive speed control: Extremely wide rangeof speed for any crop and application.
• Solar energy powered LED light and safety lamp: Enables night time irrigation.
• Manual brake system
• Rear Tyres 750 x 16 - Front Tyre : 4.5 x 12
• Digital travel speed and turbine rotation tachometers
• Electronic And Solar System (2 x 18 Amp Gel Battery, 2 x 20W Solar Panel, Digital Turbine and Tachometer RPM reader, Led Safety Lamp, Led Working Lamp, Led Inner Body Lamp)
• Automatic winch spooling system: Provides perfectly rolled cable and extends cable’s life span.
• Cable Drum Rewind Handlefor easy cable retrieval on an aborted run and to take up slack cable prior to start-up.
• Hose reels (Optional up to 2 hose reels): The hose reels can be independently operated.
• Portable: The DuCaR IrriCruiser is ideal for irrigating widely scattered areas. They can be towed from field to field or farm to farm.
• Excellent Water Uniformity: The continuous movement of the sprinkler and traveller irrigator provides a perfect uniformity and even water distribution.
• Long Life & Simple Maintenance:The units are built from long life components and require a minimum of maintenance. Spare parts and backup service available.
• Easy and safe operation
• Very low labour requirement: The DuCaR IrriCruiser can easily be operated by one man and the labour consists mostly of driving a tractor.
• Compact Concept
• Extendible wheel bars: Provide stability and make the IrriCruiser suitable for narrow paths
• Designed in Australia, made in Turkey

New Generation DuCaR IrriCuriser Turbine System

• The turbine provides the high torque to pull the DuCaR IrriCuriser & Hose along the cable in tough conditions.
• DuCaR IrriCuriser develops the power as a result of water flow, not pressure. Therefore it can be operated at low pressures.
• Three speed heavy duty type; Italian made gear box coupled to the turbine provides the DuCaR IrriCuriser with a wide range of travel speeds to suit your particular crop water requirements and allows you to save a lot of energy.
• The volume of water entering the turbine is controlled by a diverter valve, which when used with the three speed gearbox, provides the DuCaR IrriCuriser with infinite range of travel speeds to suit differing crop water requirements.
• The turbine’s RPM and travelling speed is read on accurate digital tachometers.
• No Filters required for the turbine drive.
• No exhaust water from the turbine drive, all water is distributed through the sprinkler.
