Sorry - this product is no longer available

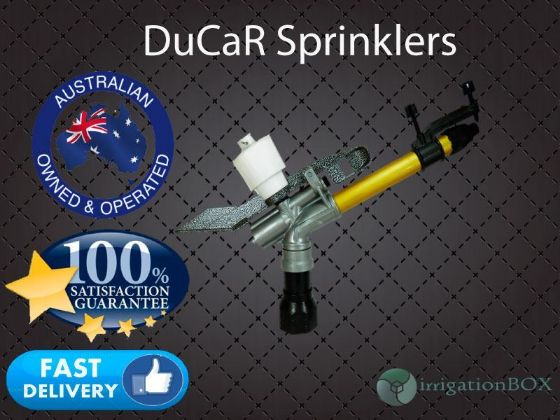

DuCaR B 25 ECON

SKU: B25 ECON
Delivery date: 2-3 business days
Manufacturer: DuCaR Sprinklers

Low-Cost, double nozzle clean water sprinkler head. Buy 2, Get $8 Off.


Water Input
:
1.5" Female BSP

Working Pressure
:
29 - 56 psi

Water Flow
:
100 - 242 l/min

Shooting Radius
:
17 - 25 m

Free Nozzles
:
8, 10, 12 mm

Body Angle
:
27°

Box Dimensions
:
25x40x7 cm

Operation
:
Full Circle

Body Material
:
Plastic & Aluminium

Housing
:
Plastic
$100.00
$109.00

IrrigationBox proudly presents DuCar Sprinklers! As an authorised distributor of DuCaR Sprinklers, we provide wide range of high quality irrigation equipment and guarantee 100% satisfaction!

Ducar B25 ECON is the introductory model of our mid volume sprinklers which provides long shooting range with perfectly even distribution at a great price!

Some unique benefits of DuCaR B25 ECON sprinkler:

  • Comes with 3 different nozzles
  • Runs on pressure range between 29 to 56 psi
  • Irrigates up to 48m diameter
  • 2 water sprays: secondary spray rotates the sprinkler, hence why it is recommended to use with CLEAN water
  • Made of composite bearing, stainless spindle and teflon speed washer
  • Lays down 6 to 14 tons of water per hour
  • Provides perfectly even distribution with its ADJUSTABLE jet breaker from the sprinkler all the way out to the end of the throw
  • Its 27° body angle reduces the effects of the wind more than 30° and 33° versions; conveniently used for any type of irrigation.
  • Lower Body Rotation Mechanism: Cost-effective, plastic and aluminum housing.



DuCaR B25 ECON Technical

Technical Specifications

Nozzle Diameter Pressure Jet Length Capacity Values for a single sprinkler
Irrigated Area Rainfall per hour
mminchatmpsimfeetl/minm3/hG.P.Mm2acremm/h
8 .31 2 29 17,0 56 100 6,0 26 907 0,22 6,6
8 .31 3 44 19 62 121 7,25 32 1134 0,28 6,4
8 .31 4 56 21 69 142 8,5 37 1385 0,34 6,1
10 .39 2 29 18 59 130 7,8 34 1017 0,25 7,7
10 .39 3 44 21 69 160 9,6 42 1385 0,34 6,9
10 .39 4 56 23 74 185 11,1 49 1590 0,39 7,0
12 .47 2 29 19 62 168 10,10 44 1134 0,28 8,9
12 .47 3 44 22 72 207 12,40 55 1520 0,38 8,2
12 .47 4 56 25 82 242 14,50 64 1963 0,48 7,4

IrrigationBox proudly presents DuCar Sprinklers! As an authorised distributor of DuCaR Sprinklers, we provide wide range of high quality irrigation equipment and guarantee 100% satisfaction!

Ducar B25 ECON is the introductory model of our mid volume sprinklers which provides long shooting range with perfectly even distribution at a great price!

Some unique benefits of DuCaR B25 ECON sprinkler:

  • Comes with 3 different nozzles
  • Runs on pressure range between 29 to 56 psi
  • Irrigates up to 48m diameter
  • 2 water sprays: secondary spray rotates the sprinkler, hence why it is recommended to use with CLEAN water
  • Made of composite bearing, stainless spindle and teflon speed washer
  • Lays down 6 to 14 tons of water per hour
  • Provides perfectly even distribution with its ADJUSTABLE jet breaker from the sprinkler all the way out to the end of the throw
  • Its 27° body angle reduces the effects of the wind more than 30° and 33° versions; conveniently used for any type of irrigation.
  • Lower Body Rotation Mechanism: Cost-effective, plastic and aluminum housing.



DuCaR B25 ECON Technical

Technical Specifications

Nozzle Diameter Pressure Jet Length Capacity Values for a single sprinkler
Irrigated Area Rainfall per hour
mminchatmpsimfeetl/minm3/hG.P.Mm2acremm/h
8 .31 2 29 17,0 56 100 6,0 26 907 0,22 6,6
8 .31 3 44 19 62 121 7,25 32 1134 0,28 6,4
8 .31 4 56 21 69 142 8,5 37 1385 0,34 6,1
10 .39 2 29 18 59 130 7,8 34 1017 0,25 7,7
10 .39 3 44 21 69 160 9,6 42 1385 0,34 6,9
10 .39 4 56 23 74 185 11,1 49 1590 0,39 7,0
12 .47 2 29 19 62 168 10,10 44 1134 0,28 8,9
12 .47 3 44 22 72 207 12,40 55 1520 0,38 8,2
12 .47 4 56 25 82 242 14,50 64 1963 0,48 7,4
Products specifications
Body Angle Medium Body Angle (23 ° to 30 °)
Water Input 1.5"
Circle Full
Minimum Required Pressure 29 psi (2 bar)
Maximum Working Pressure 59 psi (4 bar)
Minimum Required Water Flow 100 l/min
Maximum Water Flow 250 l/min
Minimum Shooting Range 16 - 20 m
Maximum Shooting Range 20 - 25 m
Box Dimension 25x40x6 cm
Nozzles 8, 10, 12 mm
Weight 0.95
