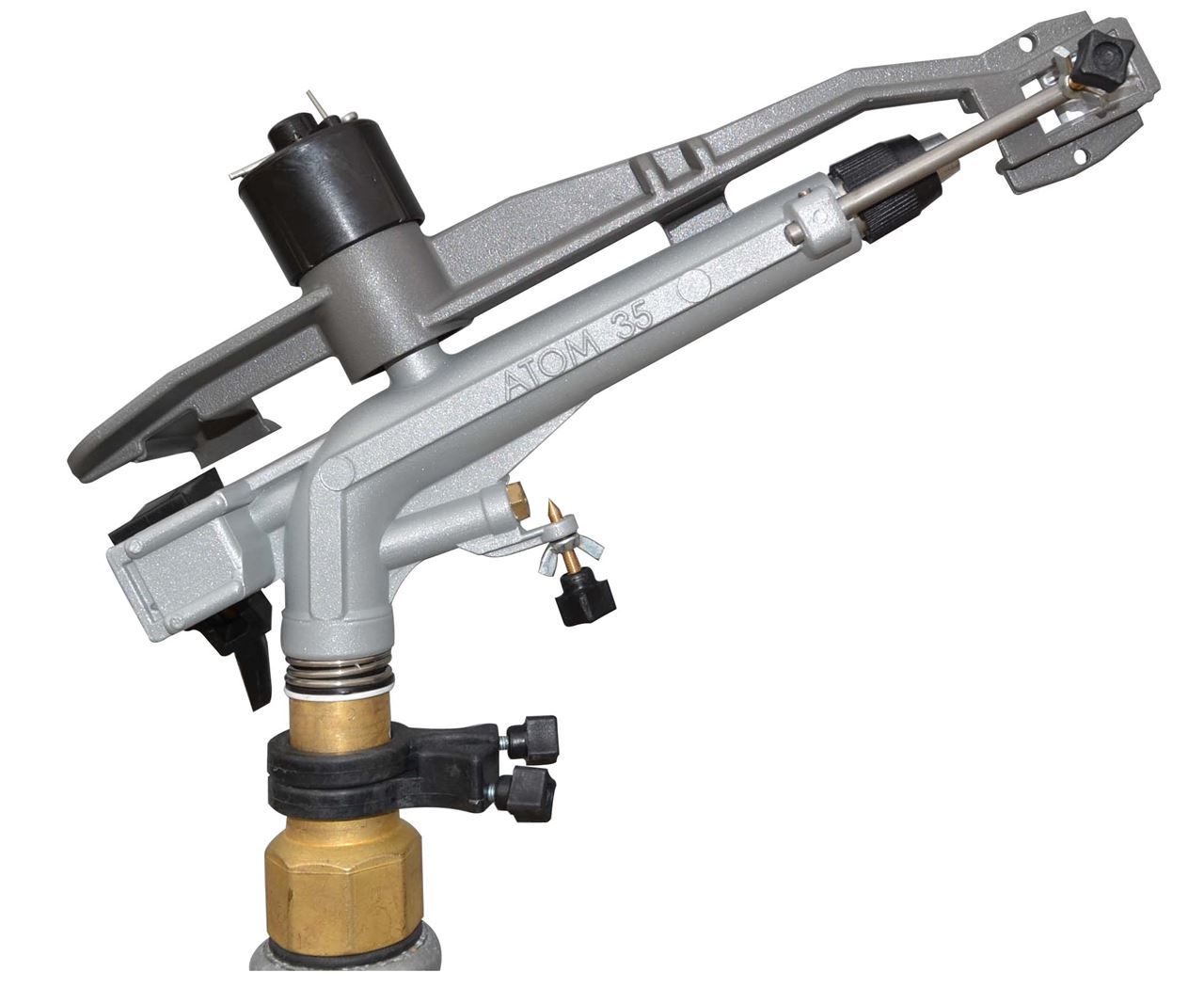

DuCaR Atom 35 Metal

2 review(s) | Add your review

Double-nozzle, long throw range, metal & brass, big irrigation sprinkler.

Water Input

1.5" Female BSP

Working Pressure

29 - 85 psi

Water Flow

152 - 533 l/min

Shooting Radius

20 - 35 m

Free Nozzles

14, 16, 18 mm

Body Angle

27°

Box Dimensions

45x35x12 cm

Weight

2.5 kg

Sprayers

Material

Cast-Iron, Aluminium & Brass

Made in

Turkey

Price: $220.00

Old price: $279.00

Manufacturer: DuCaR Sprinklers

SKU: Atom35

Shipping

Delivery date 2-3 business days

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Make Your Sprinkler Set:

DuCaR 1.5" Quick-Connect Fittings for Impact or Gear Drive Sprinklers [+$79.00]
DuCaR 1.5" Wheeled Sprinkler Cart [+$330.00]
DuCaR 1.5" 4-Legged Pro Connection Stand [+$300.00]

Qty:

+ -

IrrigationBox proudly presents DuCaR Sprinklers! As an authorised distributor of DuCaR Sprinklers, we provide wide range of high quality irrigation equipment and guarantee 100% satisfaction!

Ducar ATOM 35 Metal is a NEW model of our mid volume sprinklers which provides long shooting range with perfectly even distribution and uniformity at a great price!

Some unique benefits of DuCaR ATOM 35 Metal sprinkler:

Comes with 3 different METAL nozzles (14, 16, 18 mm)
2 Trajectories
Runs on pressure range between 29 to 85 psi
Full and part (angle-adjusted) circle irrigation
Irrigates up to 70m diameter!
Lays down 9.3 to 32.5 tons of water per hour
Dynamic or attached jet breakers
Provides perfectly even distribution with its ADJUSTABLE jet breaker from the sprinkler all the way out to the end of the throw
Replaceable nozzle ends and two-hole water outlets allow you to irrigate your field excellently by using minimum water
Great for any field crops and vegetables
Auto BRAKE system for keeping slow rotation speed on high pressure.
Full METAL Body and BRASS housing.

Technical Specifications

mm	inch	atm	psi	m	feet	l/min	m³/h	G.P.M	m²	acre	mm/h
Nozzle Diameter		Pressure		Jet Length		Capacity			Values for a single sprinkler
Nozzle Diameter		Pressure		Jet Length		Capacity			Irrigated Area		Rainfall per hour
12	.47	2	29	20,0	66	152	9,3	41	1256	0,31	7,4
12	.47	3	44	24,0	79	182	11,2	49	1809	0,45	6,2
12	.47	4	56	27,0	89	211	13,0	57	2289	0,57	5,7
12	.47	5	70	28,0	92	236	14,2	63	2462	0,61	5,2
14	.55	2	29	21,0	69	195	12,1	53	1384	0,34	8,4
14	.55	3	44	25,0	82	239	14,5	64	1962	0,48	7,4
14	.55	4	56	29,0	95	277	16,9	74	2640	0,65	6,4
14	.55	5	70	30,0	98	309	18,9	83	3017	0,75	6,3
16	.62	2	29	22,0	72	247	15,2	67	1519	0,38	10,0
16	.62	3	44	26,0	85	303	18,9	83	2123	0,52	8,9
16	.62	4	56	30,0	98	351	21,5	95	2826	0,70	7,5
16	.62	5	70	32,0	105	391	24,0	106	3215	0,79	6,9
18	.70	3	44	27,0	89	378	23,1	102	2461	0,61	9,4
18	.70	4	56	30,0	98	436	27,0	119	3017	0,75	8,9
18	.70	5	70	34,0	112	487	30,1	133	3629	0,90	8,1
18	.70	6	85	35,0	115	533	32,5	143	3847	0,95	7,9

Download Catalogue

Comes with 3 different METAL nozzles (14, 16, 18 mm)
2 Trajectories
Runs on pressure range between 29 to 85 psi
Full and part (angle-adjusted) circle irrigation
Irrigates up to 70m diameter!
Lays down 9.3 to 32.5 tons of water per hour
Dynamic or attached jet breakers
Provides perfectly even distribution with its ADJUSTABLE jet breaker from the sprinkler all the way out to the end of the throw
Replaceable nozzle ends and two-hole water outlets allow you to irrigate your field excellently by using minimum water
Great for any field crops and vegetables
Auto BRAKE system for keeping slow rotation speed on high pressure.
Full METAL Body and BRASS housing.

Technical Specifications

mm	inch	atm	psi	m	feet	l/min	m³/h	G.P.M	m²	acre	mm/h
Nozzle Diameter		Pressure		Jet Length		Capacity			Values for a single sprinkler
Nozzle Diameter		Pressure		Jet Length		Capacity			Irrigated Area		Rainfall per hour
12	.47	2	29	20,0	66	152	9,3	41	1256	0,31	7,4
12	.47	3	44	24,0	79	182	11,2	49	1809	0,45	6,2
12	.47	4	56	27,0	89	211	13,0	57	2289	0,57	5,7
12	.47	5	70	28,0	92	236	14,2	63	2462	0,61	5,2
14	.55	2	29	21,0	69	195	12,1	53	1384	0,34	8,4
14	.55	3	44	25,0	82	239	14,5	64	1962	0,48	7,4
14	.55	4	56	29,0	95	277	16,9	74	2640	0,65	6,4
14	.55	5	70	30,0	98	309	18,9	83	3017	0,75	6,3
16	.62	2	29	22,0	72	247	15,2	67	1519	0,38	10,0
16	.62	3	44	26,0	85	303	18,9	83	2123	0,52	8,9
16	.62	4	56	30,0	98	351	21,5	95	2826	0,70	7,5
16	.62	5	70	32,0	105	391	24,0	106	3215	0,79	6,9
18	.70	3	44	27,0	89	378	23,1	102	2461	0,61	9,4
18	.70	4	56	30,0	98	436	27,0	119	3017	0,75	8,9
18	.70	5	70	34,0	112	487	30,1	133	3629	0,90	8,1
18	.70	6	85	35,0	115	533	32,5	143	3847	0,95	7,9

Download Catalogue

Products specifications

Attribute name	Attribute value
Body Angle	Medium Body Angle (23 ° to 30 °)
Water Input	1.5"
Circle	Full & Part
Minimum Required Pressure	29 psi (2 bar)
Maximum Working Pressure	85 psi (6 bar)
Minimum Required Water Flow	150 l/min
Maximum Water Flow	550 l/min
Minimum Shooting Range	16 - 20 m
Maximum Shooting Range	30 - 40 m
Box Dimension	45x35x12 cm
Nozzles	12, 14, 16, 18 mm
Weight	2.5 kg
