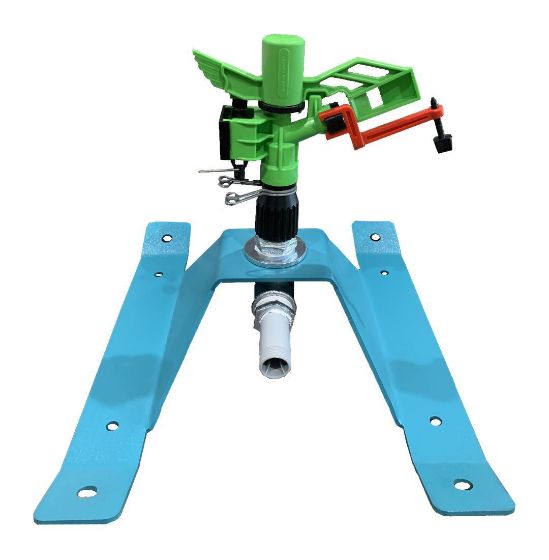

DuCaR Atom 15 PC LOW Flow Sprinkler with 1" Skid Base

1 review(s) | Add your review

Perfect for golf courses and residential areas, the new skid base can be easily dragged and suitable for any garden hoses!

Water Input

1" Female BSP

Working Pressure

29 - 50 psi

Water Flow

15 - 28.7 l/min

Shooting Radius

13 - 16 m

Suitable Nozzles

4, 4.5, 5 mm

Body Angle

23°

Weight

4 kg

Operation

Full & Part Circle

Skid Water Inlet

3/4" Male BSP

84,00 €

Manufacturer: DuCaR Sprinklers

SKU: ATMPCLF-SB1

Shipping

Delivery date 2-3 business days

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Qty:

+ -

IrrigationBox presents NEW DuCar Atom 15 FC LOW Flow Sprinkler with 1" Skid Base! It can be easily dragged along your paddock! Thanks to its heavy-duty design, it provides great stability for high pressure irrigation applications. The skid base has been designed for sprinklers with 1" female bsp inlet and 3/4" garden hoses. This powder coated skid base is perfect for golf courses, hobby gardens and residential irrigation applications!

Some unique benefits of DuCaR 1" Skid Base:

Allows for quick and easy transportation
Works with a large range of sprinkler heads
The standard 1" male sprinkler connection fittigs can be replaced with smaller fittings for smaller sprinkler heads
3/4" male water inlet fitting contains special turbulence stopping blades
Suitable for any type of garden hose with 3/4" female bsp fitting
Length: 42.5 cm
Width: 33.5 cm
Height: 13.5 cm
Weight: 3.7 kg

The Atom 15 PC LOW FLOW sprinklers, small and medium discharge, operate over a full 360 degrees or adjusted angle. It is equipped with various interchangeable nozzles and an adjustable jet breaker. This model, made from engineering plastics, is long lasting with optimum efficiency. It is ideal for fixed installation and over-tree irrigation of orchards, vineyards and nurseries.

The Atom 15 PC LOW FLOW sprinkler is most commonly used for residential and vegi garden spray irrigation.

By using the body angle of 23⁰, optimum irrigation can be ensured

This sprinkler has a low flow sprayer, specifically designed to operate at different angles and under extreme temperature conditions. It has a 1" female pastic BSP threaded inlet and comes with 4.5 mm (black) nozzle.

Technical Specifications (DuCaR Atom 15 PC LOW FLOW)

mm	Shape	atm	psi	m	feet	l/min	m³/h	G.P.M	m²	acre	mm/h
Nozzle Diameter		Pressure		Jet Length		Capacity			Values for a single sprinkler
Nozzle Diameter		Pressure		Jet Length		Capacity			Irrigated Area		Rainfall per hour
4.0	●	2.0	29	13.0	43	15	0.9	4.0	531	0.13	1.7
4.0	●	2.5	36	13.5	44	16	0.96	4.2	572	0.14	1.7
4.0	●	3.0	43	14.2	47	17.5	105	4.6	633	0.16	1.7
4.0	●	3.5	50	14.6	48	20.8	1.25	5.5	669	0.17	1.9
4.5	●	2.0	29	13.0	43	17.5	1.05	4.6	531	0.13	2.0
4.5	●	2.5	36	13.5	44	19.7	1.18	5.2	572	0.14	2.1
4.5	●	3.0	43	14.5	48	21.5	1.29	5.7	660	0.16	2.0
4.5	●	3.5	50	15.0	49	23.3	1.40	6.2	707	0.17	2.0
5.0	●	2.0	29	14.0	46	22.5	1.35	5.9	615	0.15	2.2
5.0	●	2.5	36	15.0	49	24.3	1.46	6.4	707	0.17	2.1
5.0	●	3.0	43	15.5	51	26.5	1.59	7.0	754	0.19	2.1
5.0	●	3.5	50	16.0	52	28.7	1.72	7.6	804	0.20	2.1

Some unique benefits of DuCaR 1" Skid Base:

Allows for quick and easy transportation
Works with a large range of sprinkler heads
The standard 1" male sprinkler connection fittigs can be replaced with smaller fittings for smaller sprinkler heads
3/4" male water inlet fitting contains special turbulence stopping blades
Suitable for any type of garden hose with 3/4" female bsp fitting
Length: 42.5 cm
Width: 33.5 cm
Height: 13.5 cm
Weight: 3.7 kg

The Atom 15 PC LOW FLOW sprinkler is most commonly used for residential and vegi garden spray irrigation.

By using the body angle of 23⁰, optimum irrigation can be ensured

Technical Specifications (DuCaR Atom 15 PC LOW FLOW)

mm	Shape	atm	psi	m	feet	l/min	m³/h	G.P.M	m²	acre	mm/h
Nozzle Diameter		Pressure		Jet Length		Capacity			Values for a single sprinkler
Nozzle Diameter		Pressure		Jet Length		Capacity			Irrigated Area		Rainfall per hour
4.0	●	2.0	29	13.0	43	15	0.9	4.0	531	0.13	1.7
4.0	●	2.5	36	13.5	44	16	0.96	4.2	572	0.14	1.7
4.0	●	3.0	43	14.2	47	17.5	105	4.6	633	0.16	1.7
4.0	●	3.5	50	14.6	48	20.8	1.25	5.5	669	0.17	1.9
4.5	●	2.0	29	13.0	43	17.5	1.05	4.6	531	0.13	2.0
4.5	●	2.5	36	13.5	44	19.7	1.18	5.2	572	0.14	2.1
4.5	●	3.0	43	14.5	48	21.5	1.29	5.7	660	0.16	2.0
4.5	●	3.5	50	15.0	49	23.3	1.40	6.2	707	0.17	2.0
5.0	●	2.0	29	14.0	46	22.5	1.35	5.9	615	0.15	2.2
5.0	●	2.5	36	15.0	49	24.3	1.46	6.4	707	0.17	2.1
5.0	●	3.0	43	15.5	51	26.5	1.59	7.0	754	0.19	2.1
5.0	●	3.5	50	16.0	52	28.7	1.72	7.6	804	0.20	2.1

Products specifications

Attribute name	Attribute value
Body Angle	Medium Body Angle (23 ° to 30 °)
Water Input	1"
Circle	Full & Part
Minimum Required Pressure	21 psi (1.5 bar)
Maximum Working Pressure	59 psi (4 bar)
Minimum Required Water Flow	22 l/min
Maximum Water Flow	45 l/min
Minimum Shooting Range	13 - 15 m
Maximum Shooting Range	20 - 25 m
