Differential Pressure Sustaining Control Valve

Be the first to review this product

Differential Pressure Sustaining Valves sustain pressure difference of two different points which is located in the system.

Connection

Flanged - Threaded - Grooved End

Material

GG25 - GGG40

Coating

Epoxy

Temperature

-10 to 80 °C

Max Operating Pressure

10 - 16 - 25 bar

Made in

Turkey

431,00 €

Manufacturer: Armas Valves & Filters

SKU: 600-Series-DIF

Shipping

Delivery date 3-10 business days

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

600 Series Valve Connection Type: *

Grooved End

Not available
Flanged

Not available

Grooved End Valve Size: *

Grooved End Valve Max Pressure: *

Flanged Valve Size: *

Flanged Valve Max Pressure: *

Qty:

+ -

Armas 600 Series - Differential Pressure Sustaining Control Valve

Applications

Irrigation
Industrial

FEATURES

The valve will be direct diaphragm closing automatic hydraulic control valve which works with line pressure. No wearable parts
such as stem, bearing and seat exist in main valve body.
The valve position will be controlled by a hand operated selector valve.
Valve size same as main line or one size smaller.
Maximum flow speed for continuous operation 5.5 m/sec (18 ft/sec).
Made in Turkey

Differential Pressure Sustaining Control Valve 600 series parts

ARMAS 600 Series Differential Pressure Sustaining Control Valve

Armaş Differential Pressure Sustaining Control Valve is the hydraulic control valve which maintains a preset pressure differential between its upstream and downstream sides. Required upstream pressure can be adjusted by the pilot easily. The valve can control heating and cooling systems, booster pump discharge, bypass lines, filters and other similar systems.

COMPONENTS:

3- Way Selector Valve
Ball Valve
In-line Finger Filter
Differential Pressure Sustaining Pilot
Pressure Gauge

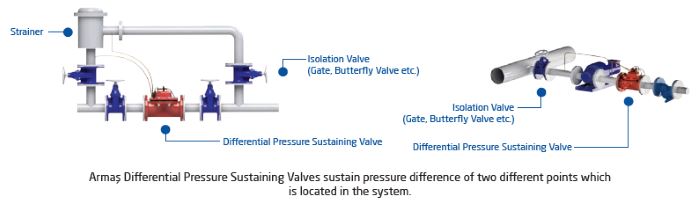

ARMAS 600 Series Differential Pressure Sustaining Control Valve Sample Application

Differential Pressure Sustaining Control Valve 600 series sample
