Booster Pump Control Valve

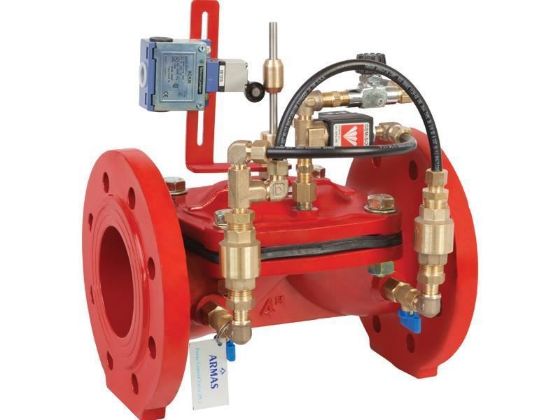

ARMAS 600 Series Booster Pump Control Valve

Armas Booster Pump Control Valve is a control valve designed for putting booster type pumps into/out of service automatically which is used water network elevating lines. When start button is pressed, pump control valve is opened by itself slowly in comparison with booster pump until pump rotation will reach working rotation. When “stop” button is pressed, control valve is closed slowly without causing surge in the first plan. When pump control valve was closed as fully sealed, it is disengaged from system by means of “Limit Switch” on it. In situations like energy interruption, works as a check valve to prevent back-flow to pump and eliminates use of an extra check valve in the system.

COMPONENTS:

1. Solenoid Pilot Valve
2. Ball Valves
3. In-line Finger Filter
4. Limit Switch Assemble
5. Needle Valve
6. Check Valve

ARMAS 600 Series Booster Pump Control Valve Sample Application
