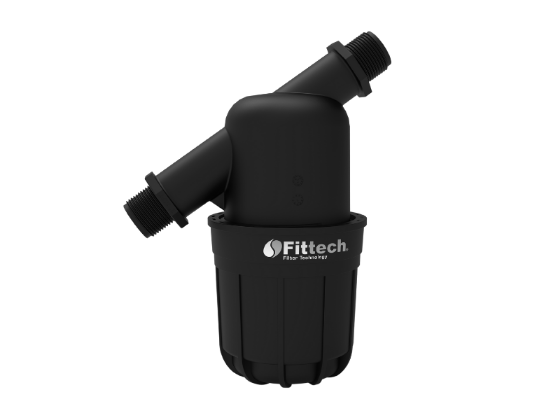

Mini Plastic Screen Filters

Body Material : Plastic
Cartridge Material : PRGF – PP
Maximum Working Pressure : 6 bar
Maximum Working Temperature : 60
The Filtration Sensitivity : 130 micron
Cartridge : Screen
$25.00
$35.00
Manufacturer: Aytok Filters
SKU: MPE
Delivery date 2-3 business days
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
*

PLEASE SELECT A SIZE

+ -

Aytok Minithings Plastic Disc Filter

Aytok MPD-MPE filters are used effectively to meet the filtering needs of water required for low-capacity usage areas. Due to its small size, it is used effectively in many areas. It is widely used in fields such as garden irrigation systems, fertilization systems, and small-scale cooling water filtration.


General Characteristic

Body Material : PP
Cartridge Material: Screen Cartridge (SS 304+PP )
Maximum Working Pressure : 8 Bar (116 PSI)
Maximum Working Temperature: 60 °C/ 140 °F
Filtration Degree: 130 micron


Technical Specifications

mini-plastic-disc-filter-technical specificationsmini-plastic-disc-filter-diagram

CODE D M T D1 H K FLOW FILTRATION AREA WEIGHT
inch mm m³/h  cm² kg
MPE3/4  3/4   1/2 68 190 160 5 165 0,3
MPE10 1   1/2 68 190 160 6 165 0,3
MPE10S 1   1/2 96 230 220 10 300 1
MPE15   1/2 96 230 220 15 300 0,75
MPE15S 1/4 1/2 120 280 270 20 515 1,2
MPE20 2 1/4 1/2 120 280 270 25 515 1,2



Filter Cleaning

The pressure difference between the inlet and outlet is observed manually from the manometers. If the pressure difference increases, the water flow is cut off and the system is stopped. Then remove the cover and take out the cartridge. For screen filter, the screen can be directly cleaned with pressurized water and reassemblied. For disc filter, loosen the the disc cartridge screw and clean the disc with pressurized water, then the filter can be reassemblied.

Aytok Minithings Plastic Disc Filter

Aytok MPD-MPE filters are used effectively to meet the filtering needs of water required for low-capacity usage areas. Due to its small size, it is used effectively in many areas. It is widely used in fields such as garden irrigation systems, fertilization systems, and small-scale cooling water filtration.


General Characteristic

Body Material : PP
Cartridge Material: Screen Cartridge (SS 304+PP )
Maximum Working Pressure : 8 Bar (116 PSI)
Maximum Working Temperature: 60 °C/ 140 °F
Filtration Degree: 130 micron


Technical Specifications

mini-plastic-disc-filter-technical specificationsmini-plastic-disc-filter-diagram

CODE D M T D1 H K FLOW FILTRATION AREA WEIGHT
inch mm m³/h  cm² kg
MPE3/4  3/4   1/2 68 190 160 5 165 0,3
MPE10 1   1/2 68 190 160 6 165 0,3
MPE10S 1   1/2 96 230 220 10 300 1
MPE15   1/2 96 230 220 15 300 0,75
MPE15S 1/4 1/2 120 280 270 20 515 1,2
MPE20 2 1/4 1/2 120 280 270 25 515 1,2



Filter Cleaning

The pressure difference between the inlet and outlet is observed manually from the manometers. If the pressure difference increases, the water flow is cut off and the system is stopped. Then remove the cover and take out the cartridge. For screen filter, the screen can be directly cleaned with pressurized water and reassemblied. For disc filter, loosen the the disc cartridge screw and clean the disc with pressurized water, then the filter can be reassemblied.
