Sorry - this product is no longer available

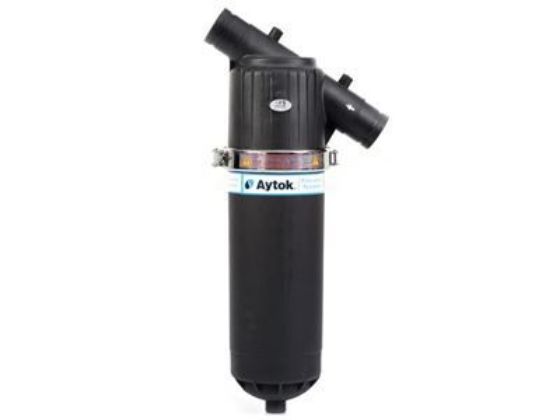

Horizontal Manual Super Plastic Disc Filters

SKU: PHSD
Delivery date: 3-10 business days
Manufacturer: Aytok Filters
Body Material : Super Plastic
Cartridge Material : PP - PRGF
Maximum Working Pressure : 8 bar
Maximum Working Temperature : 60°
The Filtration Sensitivity : 20-50-100-125 micron
Cartridge : Disc
$200.00
*

PLEASE SELECT A SIZE

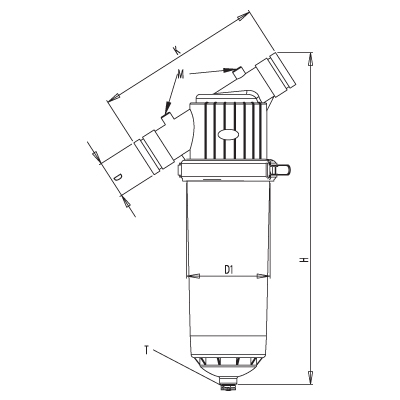

Technical Specifications

PHD Plastic disc filter technical
Product Code D D1 H K M T
Flow Rate Filter Surface Weight
 mminchmmmmmminchinchm3/hcm2kg
PHD 25 63 2 1/2" 190 680 340 1/4” 3/4” 35 1302 6.702
PHSD 25 63 2 1/2" 190 790 340 1/4” 3/4” 40 1805 7.88
PHD 3 76 3" 190 680 340 1/4” 3/4” 35 1302 6.88
PHSD 3 76 3" 190 790 340 1/4” 3/4” 45 1805 7.94





Technical Specifications

PHD Plastic disc filter technical
Product Code D D1 H K M T
Flow Rate Filter Surface Weight
 mminchmmmmmminchinchm3/hcm2kg
PHD 25 63 2 1/2" 190 680 340 1/4” 3/4” 35 1302 6.702
PHSD 25 63 2 1/2" 190 790 340 1/4” 3/4” 40 1805 7.88
PHD 3 76 3" 190 680 340 1/4” 3/4” 35 1302 6.88
PHSD 3 76 3" 190 790 340 1/4” 3/4” 45 1805 7.94
