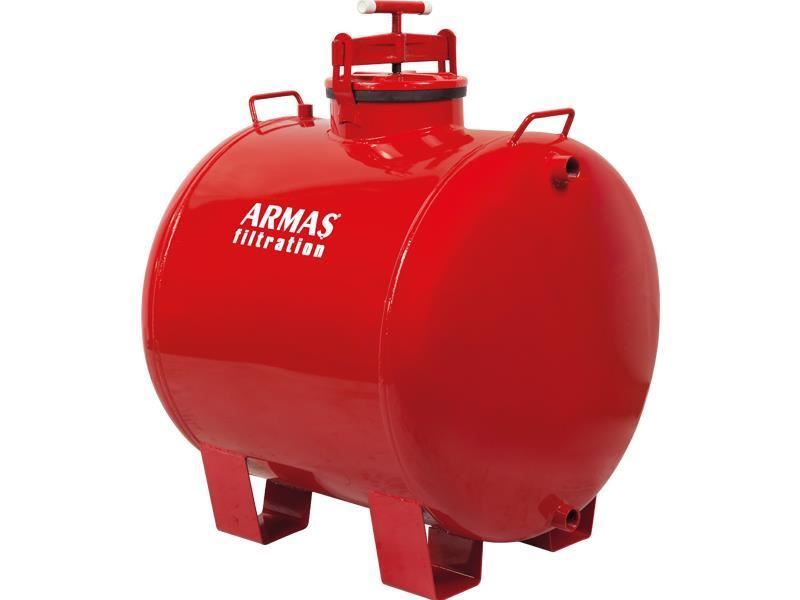

Fertilizer Tank

SKU: FT
Delivery date: 3-10 business days
Manufacturer: Armas Valves & Filters
Body Material : ST37-2 (DIN 17100)
Operating Pressure : 0.3-8 bar
Working Temperature : -10° C to 80° C
Connection : Flanged ISO 7005-2 or ANSI Threaded BSPT-NPT or Grooved End
$290.00

ARMAS FERTILIZER TANK

APPLICATIONS

  • Chemical fertilization applications by pressure agricultural irrigation systems
  • Pesticide administration by pressure agricultural irrigation systems

FEATURES

  • It provides ease of use and of maintenance due to simple structure.
  • Pre-painting phosphorization is performed for maximum resistance against corrosion and chemical solution.
  • It has long economic life based on Epoxy – Polyester coating.
  • It operates based on line pressure of the system.

Armas 5000 series fertilizer tanks are developed for chemical fertilizer or pesticide applications directly to root region of the plant using irrigation water of drip or sprinkler irrigation systems. It ensures very practical and convenient fertilizing and pesticide administration in irrigation systems due to simple structure and ease of use. Different models with varying capacities are available including horizontal and vertical types depending on different needs of present irrigation system. Operating based on pressure difference principle in the irrigation systems, Armaş 5000 series fertilizer tanks will operate long years without requiring maintenance due to resistant construction.

Armas fertilizer tank operating principle

OPERATING PRINCIPLE

Armas 5000 series fertilizing tank is connected parallel to main pipe of irrigation system using elastic hoses via by-pass method. Irrigation water enters into the tank containing soluble chemical from the inlet hose of fertilizer tank connected to the line. Due to pressure gradient created using a valve or pressure reducer assembled on the irrigation line, chemical fertilizer is solved and it is blended within the tank. Solved chemical fertilizer is supplied to the root region of the plant using irrigation water.



 Download Product Catalogue



Material List

Armas ferilizer tank parts Part No Part Name Material
1 Body ST37-2 (DIN 17100)
2 Lid Seal NBR/EPDM
3 Lod DIN EN 10131
4 Arm STEEL (DIN 2458)



Technical Specifications

Max. Operating Pressure Test Pressure Temperature Connection Coating
8(bar) 120(psi) 12(bar) 175(psi) -10°C–80°C (14°F–176°F) DIN 2401 /2

Flanged: ISO / ANSI

Threaded: BSPT / NPT

1. Phase: Phosporization

2. Phase: Electrostatic Powding Polyster - Epoxy



Available models and recommended flow rates

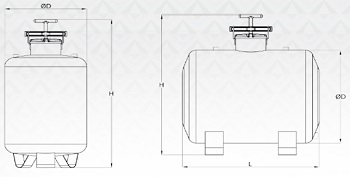

Fertilizer tank dimensions Model Capacity ØD H L Weight
 litregaloninchmminchmminchmmkglbs
V5060 60 16 15" 380 30" 760 - - 24 53
H5120 120 32 17.7" 450 31.5" 800 29.5" 750 40 88
H5200 200 52 25.2" 640 37.4" 950 28.7" 730 52 115
H5300 300 79 25.2" 640 37.4" 950 38.2" 970 68 150
H5400 400 106 25.2" 640 37.4" 950 48.4" 1230 76 168
H5500 500 132 25.2" 640 37.4" 950 58.3" 1480 102 225



Tank Injection Rate

Armas ferilizer tank injection rate Pressure Difference Injection Rate 3/4" inlet - 3/4" outlet Injection Rate ½" inlet- ½" outlet Injection Rate 1" inlet- 1" outlet
0.9 bar 1400 l/h 3980 l/h 5120 l/h
0.8 bar 1340 l/h 3750 l/h 4830 l/h
0.7 bar 1250 l/h 3510 l/h 4520 l/h
0.6 bar 1160 l/h 3250 l/h 4180 l/h
0.5 bar 1050 l/h 2970 l/h 3800 l/h
0.4 bar 940 l/h 2650 l/h 3420 l/h
0.3 bar 820 l/h 2300 l/h 2950 l/h
0.2 bar 670 l/h 1880 l/h 2400 l/h
0.1 bar 450 l/h 1320 l/h 1700 l/h
