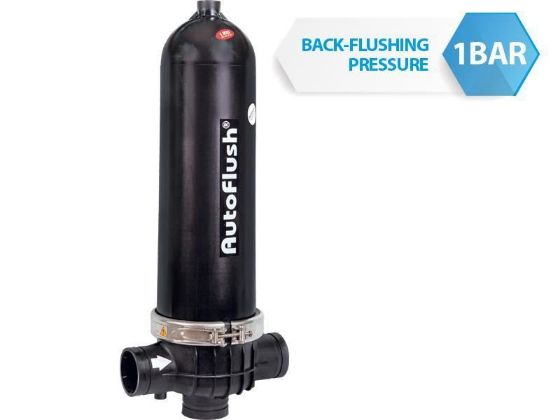

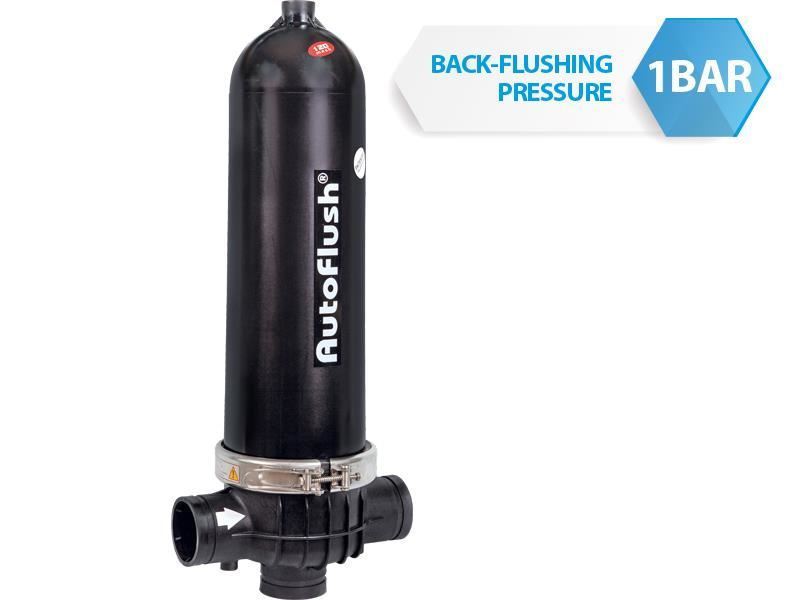

AutoFlush® Automatic Plastic Disc Filter

Body Material : Plastic Carbon
Max. Working Pressure : 8 bar
Min. Backflushing Pressure : 1 bar
Min. Backflushing Flow Rate : 9–11 m3/h
Max. Working Temperature : 0°-60°C
The Filtration Degree : 100-130-200 micron
Cartridge : Disc
Inlet/Outlet Size : 3" (80 mm)
Made in : Turkey
$700.00
$900.00
Manufacturer: Armas Valves & Filters
SKU: PAF
Delivery date 3-10 business days
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
*
+ -

ARMAS AutoFlush Plastic Disc Filter

APPLICATIONS

  • Filtration of well water
  • Filtration of river, lake and reserve water
  • Filtration of applications such as process water and cooling water
  • Agricultural drip and micro-irrigation systems
  • For recreational irrigation system practices

FEATURES

  • Back-flushing pressure is 1 bar.
  • Back flushing process is completed in automated manner.
  • Water supply is not interrupted during back flushing process.
  • As it can be cleaned within short time, very low amount of water is used in back flushing process. Due to discs with varying dimensions, desired filtration degree is ensured.
  • Maintenance during operation is very easy.
  • As it is used in modular filter systems, filtration at desired rates can be performed.
  • Due to body and framework reinforced against corrosion, it has long operation life.



AutoFlush® Automatic Plastic Disc Filter is constructed by assembling many tiny synthetic disc manufactured from polypropylene material on filter body with telescopic structure. When synthetic discs arranged one-on-other are centralized around within telescopic filter body, center of discs forms a hollow disc. They are designed to perform a deep filtration based on desired micron level found on both sides of synthetic discs and inter-sectioning of channels designed in crosswise manner. Most outstanding advantage of AutoFlush ® Automatic Plastic Disc filter is that automatically self cleans the filter when it is obstructed.

OPERATING PRINCIPLE

AutoFlush® Automatic Plastic Disc Filter operates in two different modes including filtration process and back flushing process. In back flushing process of AutoFlush® Automatic disc filter, internal mechanism of filter, where synthetic discs are assembled, is automatically flushed. During cleaning process, no need for assembly and disassembly cycle of filter’s internal mechanism ensures continuousoperation.



Armas autoflush filter cleaning process

Filtration Process

Many synthetic discs assembled on telescopic filter body create a hollow cylinder. Those discs assembled on the filter body are compressed using spring force and water pressure. Due to above mentioned arrangement of discs, many crosswise water channels intersecting each other are formed between two discs. Polluted water supplied from inlet pipe of AutoFlush® Automatic Disc Filter is transferred on discs due to cyclone effect arising from centrifuge wing found on filter body. The polluted water supplied as mentioned above passes from crosswise water channels and it is filtered depending on filtration degree. Particles with diameter larger than channel diameter of the disc attach to exterior surface of discs. Filtered clean water progresses from hollow section of discs and thus, clean water is supplied to the system from clean water pipe of the filter. As pressure resistance of discs involved in AutoFlush® automatic plastic disc filters shall cause no change on filter surface, efficiency to trap solid particles will be very high.

Armas autoflush filter disc
Armas autoflush filter backwash process

Back-flushing Process

Throughout filtration process, synthetic discs will be obstructed at a particular time due to filtration of polluted water containing particulate matter. Back flushing process of AutoFlush® automatic disc filters connected parallel to the system is time- dependently started using pressure gradient (DP) sensor or a control de- Groovede. The filtered clean water is supplied in reverse manner along telescopic filter body from the clean water pipe of AutoFlush® automatic disc filter. Pressure of back flushing water elongates distance between discs by removing spring force on the synthetic discs. Pressure clean water is sprayed from nozzles on filter body to the crosswise channels of discs. Due to spray of pressure clean water, particles previously attached to the channels of synthetic discs are cleaned and discharged. Back flushing process is completed within short time such as 15-20 seconds. Thus, coupious amount of water is not used for flushing AutoFlush® automatic disc filter, as the case for other filters. At the end of the back flushing process, filter is shifted to filtration position.

Armas autoflush filter backwash disc



 Download Product Catalogue



Please note that: The filter does not come with a control panel and the other elements in below sample application.



Material List



Armas Autoflush parts Part No Part Name Material
1 Body Polyamide (PA6.6 %30 GFR)
2 Lid Polyamide (PA6.6 %30 GFR)
3 Hydrocyclone Wing PET–P
4 Manual Filter Frame PET–P
5 Disc Nylon Reinforced PP
6 Bolt 8.8Js-500 Steel
7 Collar SST



Available Models and Recommended Flow Rates



Modules (pcs) Recommended Flow (m3/h) Min. Back-Flushing Flow Rate (m3/h) Max. Operating Pressure (bar) Min. Back-Flushing Pressure (bar) Filtering Area (cm2)
2 Modules 60 m3/h 18 m3/h 8 bar 1 bar 3040 cm2
3 Modules 90 m3/h 27 m3/h 8 bar 1 bar 4560 cm2
4 Modules 120 m3/h 36 m3/h 8 bar 1 bar 6080 cm2
5 Modules 150 m3/h 45 m3/h 8 bar 1 bar 7600 cm2
6 Modules 180 m3/h 54 m3/h 8 bar 1 bar 9120 cm2



Technical Specifications



Autoflush dimensions Product Code ØA ØD H L Flow Rate Filter Surface Weight
  inch mm mm mm mm m3/h cm2 kg
PAF120-3" 1" 25 214 773 318 25-35 1520 9



Head Loss Chart & Sample Application



Autoflush plastic disc filter curve Autoflush automatic plastic disc filter sample application Back flushing control valves adjusting filtration and back flushing positions of AutoFlush® automatic disc filters connected parallel to the manifold collector system are programmed by differential pressure sensor (DP) for pressure and by control device for timedependent parameters.
